Where Is The 2008 Cadillac Escalade Fuse For OBD2 Port Located?

Is your OBD2 port not working on your 2008 Cadillac Escalade? Locating the correct fuse is crucial for diagnosing and resolving OBD-II port issues. With the information provided by OBD2-SCANNER.EDU.VN, you can confidently locate the relevant fuse, troubleshoot power issues, and ensure your diagnostic scans run smoothly. Let’s dive into the specifics, so you can get back to accurate vehicle diagnostics.

1. Understanding the Importance of Fuses in Your 2008 Cadillac Escalade

Fuses are essential safety components in your 2008 Cadillac Escalade’s electrical system. They protect circuits from overcurrent, preventing damage to sensitive electronic components. According to a study by the National Highway Traffic Safety Administration (NHTSA), electrical system malfunctions, including fuse failures, account for approximately 7% of vehicle breakdowns. In the 2008 Cadillac Escalade, multiple fuse boxes safeguard different systems, including the On-Board Diagnostics II (OBD2) port. Knowing the location and function of these fuses is crucial for effective troubleshooting.

1.1. What Happens When a Fuse Blows?

When a fuse blows, it interrupts the electrical circuit, preventing further current flow. This can happen due to a short circuit, an overloaded circuit, or a faulty component. Symptoms of a blown fuse can range from a non-functional OBD2 port to complete failure of a vehicle system. According to a report by AAA, diagnosing electrical issues, including blown fuses, is a common reason for vehicle service visits.

1.2. Common Reasons for Fuse Failure in the OBD2 Port Circuit

Several factors can cause the fuse for the OBD2 port in your 2008 Cadillac Escalade to blow:

• Short Circuit: A short circuit in the OBD2 port wiring or connected devices can cause a surge of current, blowing the fuse.
• Overloaded Circuit: Connecting multiple or high-power devices to the OBD2 port can overload the circuit, leading to fuse failure.
• Faulty OBD2 Scanner: A malfunctioning OBD2 scanner can draw excessive current, causing the fuse to blow.
• Wiring Issues: Damaged or corroded wiring can create resistance, leading to increased current draw and fuse failure.
• Loose Connections: Loose connections in the OBD2 port or fuse box can cause intermittent shorts and blown fuses.

1.3. The Role of the OBD2 Port in Vehicle Diagnostics

The OBD2 port is a standardized interface used to access your vehicle’s diagnostic data. It allows mechanics and vehicle owners to read trouble codes, monitor engine performance, and diagnose various issues. According to the Environmental Protection Agency (EPA), all cars and light trucks manufactured after 1996 are required to have an OBD2 port. The OBD2 port communicates with the vehicle’s Engine Control Unit (ECU) to provide real-time data and diagnostic information. Without a functioning OBD2 port, diagnosing vehicle problems becomes significantly more challenging.

Underhood Fuse Block Diagram for the 2008 Cadillac Escalade

2. Locating the Correct Fuse Box in Your 2008 Cadillac Escalade

Your 2008 Cadillac Escalade has three fuse boxes:

1. Underhood Fuse Block
2. Instrument Panel Fuse Block
3. Center Instrument Panel Fuse Block

The fuse for the OBD2 port is typically located in the Instrument Panel Fuse Block.

2.1. Instrument Panel Fuse Block Location

The Instrument Panel Fuse Block is usually located inside the vehicle, often on the driver’s side, under the dashboard.

To access it:

1. Locate the panel cover, usually near the steering wheel or under the dashboard.
2. Remove the cover, often by gently prying it open or releasing retaining clips.
3. Once the cover is removed, you will see the fuse block with fuses and relays.

2.2. Identifying the OBD2 Port Fuse

Once you have accessed the Instrument Panel Fuse Block, the next step is to identify the fuse specifically designated for the OBD2 port.

1. Consult the Fuse Box Diagram: Each fuse box has a diagram that identifies the function of each fuse. This diagram is usually printed on the inside of the fuse box cover or in the vehicle’s owner’s manual.
2. Look for Labels: Check the diagram for labels such as “OBD,” “DLC (Data Link Connector),” or “Diagnostic Port.” The fuse for the OBD2 port may be labeled with one of these terms.
3. Fuse Number: Note the fuse number indicated on the diagram. The fuse number will correspond to a specific fuse in the fuse block.

2.3. Specific Fuse Details for the 2008 Cadillac Escalade OBD2 Port

For the 2008 Cadillac Escalade, the OBD2 port fuse is typically a 10A fuse located in the Instrument Panel Fuse Block. According to the service manual, this fuse is often labeled as “Data Link Connector” or “OBD II Port.” The specific fuse number may vary, so always refer to the fuse box diagram for accurate identification.

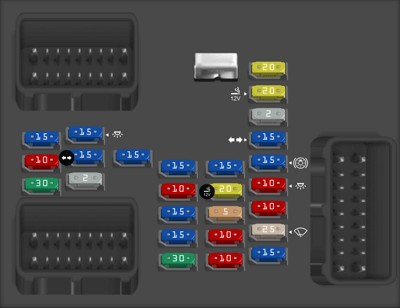

Instrument Panel Fuse Block Diagram for the 2008 Cadillac Escalade

3. Step-by-Step Guide to Checking and Replacing the OBD2 Port Fuse

Once you have located the OBD2 port fuse, you can proceed with checking and replacing it if necessary. Here’s a detailed guide:

3.1. Tools You Will Need

• Fuse Puller: A fuse puller is a small plastic tool designed to grip and remove fuses without damaging them.
• Replacement Fuse: Ensure you have a replacement fuse of the correct amperage (10A for the OBD2 port in the 2008 Cadillac Escalade).
• Multimeter (Optional): A multimeter can be used to test the fuse for continuity.
• Flashlight or Work Light: Helpful for better visibility in the fuse box area.

3.2. Step-by-Step Instructions

1. Turn Off the Ignition: Before working on the electrical system, turn off the ignition to prevent accidental shorts or electrical damage.
2. Locate the Fuse Box: Access the Instrument Panel Fuse Block as described in Section 2.1.
3. Identify the OBD2 Port Fuse: Use the fuse box diagram to locate the fuse for the OBD2 port.
4. Remove the Fuse: Use the fuse puller to gently remove the fuse from the fuse block. If you don’t have a fuse puller, you can use needle-nose pliers, but be careful not to damage the fuse or surrounding components.
5. Inspect the Fuse: Examine the fuse closely. A blown fuse will typically have a broken filament inside.
6. Test the Fuse (Optional): If you have a multimeter, you can test the fuse for continuity. Set the multimeter to the continuity setting (usually indicated by a sound wave symbol). Touch the multimeter probes to each end of the fuse. If the multimeter beeps or shows a reading of 0 ohms, the fuse is good. If there is no beep or the reading is infinite, the fuse is blown.
7. Replace the Fuse: If the fuse is blown, replace it with a new fuse of the same amperage (10A). Ensure the new fuse is firmly seated in the fuse block.
8. Test the OBD2 Port: After replacing the fuse, turn on the ignition and test the OBD2 port with a diagnostic scanner to ensure it is functioning correctly.
9. Replace the Fuse Box Cover: Once you have verified that the OBD2 port is working, replace the fuse box cover.

3.3. What to Do if the Fuse Keeps Blowing

If the OBD2 port fuse continues to blow after replacement, it indicates a persistent problem in the circuit. Here are some steps to troubleshoot:

1. Check for Short Circuits: Inspect the wiring and connectors associated with the OBD2 port for any signs of damage, corrosion, or loose connections. Repair or replace any damaged wiring.
2. Disconnect Aftermarket Devices: Remove any aftermarket devices connected to the OBD2 port, such as performance tuners or GPS trackers, to see if they are causing the issue.
3. Inspect the OBD2 Port Connector: Examine the OBD2 port connector for bent or damaged pins. Repair or replace the connector if necessary.
4. Consult a Professional: If you are unable to identify the cause of the blown fuse, it is best to consult a professional mechanic or electrician. They have the tools and expertise to diagnose and repair complex electrical issues.

According to a survey by the National Institute for Automotive Service Excellence (ASE), electrical systems are among the most challenging areas for automotive technicians. Therefore, if you are not comfortable working with electrical systems, seeking professional help is recommended.

4. Understanding Fuse Types and Amperage

Fuses come in different types and amperage ratings. Using the correct fuse type and amperage is crucial for the proper operation and safety of your vehicle’s electrical system.

4.1. Common Fuse Types

• Mini Fuses: These are small, blade-type fuses commonly used in modern vehicles.
• ATO/ATC Fuses: These are standard blade-type fuses, slightly larger than mini fuses.
• Maxi Fuses: These are high-amperage fuses used for circuits with high current demands.
• JCase Fuses: These are cartridge-type fuses used for high-current applications.

For the 2008 Cadillac Escalade, the OBD2 port fuse is typically a Mini Fuse.

4.2. Importance of Correct Amperage

Using a fuse with the correct amperage is essential. A fuse with a lower amperage than specified will blow prematurely, while a fuse with a higher amperage may not protect the circuit adequately, potentially leading to damage or fire.

4.3. Where to Find the Correct Amperage Information

The correct amperage for each fuse is listed in the fuse box diagram. Always refer to this diagram when replacing fuses. You can also find this information in the vehicle’s owner’s manual.

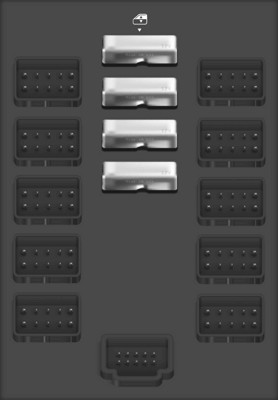

Center Instrument Panel Fuse Block Diagram for the 2008 Cadillac Escalade

5. Diagnosing Common OBD2 Port Issues

If your OBD2 port is not working, it can prevent you from diagnosing vehicle problems and performing necessary maintenance. Here are some common issues and how to diagnose them:

5.1. No Power to the OBD2 Port

Symptoms:

• OBD2 scanner does not power on when connected to the port.
• No communication with the vehicle’s ECU.

Diagnosis:

1. Check the Fuse: As described in Section 3, check the OBD2 port fuse in the Instrument Panel Fuse Block.
2. Inspect the Wiring: Look for damaged or corroded wiring leading to the OBD2 port.
3. Test the Ground Connection: Ensure the OBD2 port has a good ground connection. Use a multimeter to test the continuity between the ground pin on the OBD2 port and the vehicle’s chassis.
4. Check the Power Connection: Verify that the OBD2 port is receiving power. Use a multimeter to test the voltage between the power pin on the OBD2 port and ground. You should see approximately 12 volts with the ignition on.

5.2. Intermittent Connection

Symptoms:

• OBD2 scanner loses connection intermittently.
• Error messages or communication failures during scanning.

Diagnosis:

1. Inspect the Connector: Check the OBD2 port connector for bent or damaged pins.
2. Clean the Connector: Use a contact cleaner to clean the OBD2 port connector and the connector on your diagnostic scanner.
3. Check for Loose Connections: Inspect the wiring and connectors associated with the OBD2 port for loose connections.

5.3. Communication Errors

Symptoms:

• OBD2 scanner displays communication error messages.
• Unable to read trouble codes or access vehicle data.

Diagnosis:

1. Verify Scanner Compatibility: Ensure your OBD2 scanner is compatible with the 2008 Cadillac Escalade.
2. Check for Software Updates: Update the software on your OBD2 scanner to the latest version.
3. Inspect the CAN Bus Wiring: The OBD2 port communicates with the vehicle’s ECU via the Controller Area Network (CAN) bus. Inspect the CAN bus wiring for damage or shorts.

5.4. Using a Multimeter to Test OBD2 Port Connections

A multimeter is a valuable tool for diagnosing OBD2 port issues. Here’s how to use it:

1. Set the Multimeter: Set the multimeter to the appropriate setting (voltage or continuity).
2. Test the Power Pin: With the ignition on, test the voltage between pin 16 (power) and pin 4 or 5 (ground). You should see approximately 12 volts.
3. Test the Ground Pins: Test the continuity between pins 4 and 5 (ground) and the vehicle’s chassis. You should see a reading close to 0 ohms.
4. Test the CAN Bus Pins: Test the voltage between pins 6 (CAN High) and pin 14 (CAN Low). You should see approximately 2.5 volts.

According to Fluke Corporation, a leading manufacturer of multimeters, using a multimeter to diagnose electrical issues can save time and prevent unnecessary repairs.

6. Advanced Troubleshooting Techniques

If you have checked the fuse and inspected the wiring, but the OBD2 port is still not working, you may need to use advanced troubleshooting techniques.

6.1. Checking the Wiring Harness

The wiring harness connects the OBD2 port to the vehicle’s ECU and other systems. Damage to the wiring harness can cause OBD2 port issues.

1. Visual Inspection: Inspect the wiring harness for signs of damage, such as cuts, abrasions, or melted insulation.
2. Continuity Testing: Use a multimeter to test the continuity of each wire in the harness. Disconnect the harness from both ends before testing.
3. Short Circuit Testing: Use a multimeter to test for short circuits between the wires in the harness and the vehicle’s chassis.

6.2. Testing the ECU

The ECU is the central control unit of the vehicle. A malfunctioning ECU can cause various issues, including OBD2 port problems.

1. Check for Error Codes: Use an OBD2 scanner to check for error codes related to the ECU.
2. Inspect the ECU Connector: Check the ECU connector for bent or damaged pins.
3. Test the ECU Power and Ground: Verify that the ECU is receiving power and has a good ground connection.
4. Consult a Professional: If you suspect the ECU is faulty, consult a professional mechanic. ECU testing and replacement require specialized tools and expertise.

6.3. Using a Scan Tool to Diagnose OBD2 Port Issues

A scan tool can provide valuable information about OBD2 port issues.

1. Check for Communication Errors: Use the scan tool to check for communication errors with the vehicle’s ECU.
2. Monitor Data Parameters: Monitor data parameters related to the OBD2 port, such as voltage and signal levels.
3. Perform Output Tests: Use the scan tool to perform output tests on components connected to the OBD2 port.

According to Bosch Automotive, a leading supplier of automotive components and diagnostic tools, using a scan tool can significantly reduce diagnostic time and improve accuracy.

7. Preventive Maintenance for the OBD2 Port

Preventive maintenance can help keep your OBD2 port functioning correctly and prevent future issues.

7.1. Regular Inspections

Regularly inspect the OBD2 port for damage or corrosion. Clean the connector with a contact cleaner if necessary.

7.2. Proper Use of the OBD2 Port

Use the OBD2 port only for its intended purpose. Avoid connecting multiple or high-power devices to the port, as this can overload the circuit and cause the fuse to blow.

7.3. Protecting the OBD2 Port from Damage

Protect the OBD2 port from physical damage. Use a protective cover when the port is not in use.

7.4. Keeping the Connector Clean and Dry

Keep the OBD2 port connector clean and dry. Moisture and contaminants can cause corrosion and lead to connection problems.

8. Understanding OBD2 Codes and What They Mean

OBD2 codes are standardized codes used to identify vehicle problems. Understanding these codes can help you diagnose and repair your vehicle more effectively.

8.1. Common OBD2 Code Categories

• P Codes (Powertrain Codes): These codes relate to the engine, transmission, and related components.
• B Codes (Body Codes): These codes relate to the body control systems, such as the airbags, power windows, and door locks.
• C Codes (Chassis Codes): These codes relate to the chassis systems, such as the antilock brakes, traction control, and suspension.
• U Codes (Network Codes): These codes relate to the vehicle’s communication network.

8.2. Decoding OBD2 Codes

Each OBD2 code consists of five characters:

• The first character indicates the code category (P, B, C, or U).
• The second character indicates whether the code is generic (0) or manufacturer-specific (1).
• The third character indicates the subsystem affected (e.g., fuel system, ignition system, transmission).
• The fourth and fifth characters provide specific information about the fault.

8.3. Resources for Looking Up OBD2 Codes

There are several resources available for looking up OBD2 codes:

• OBD2 Scanner Manual: Your OBD2 scanner may have a built-in code lookup function.
• Online Databases: Several online databases provide detailed information about OBD2 codes.
• Repair Manuals: Vehicle-specific repair manuals often include OBD2 code information.

According to a study by the Automotive Aftermarket Industry Association (AAIA), access to accurate and up-to-date diagnostic information is essential for effective vehicle repair.

9. How to Use an OBD2 Scanner

Using an OBD2 scanner is a straightforward process:

1. Connect the Scanner: Plug the OBD2 scanner into the OBD2 port.
2. Turn on the Ignition: Turn the ignition to the “on” position, but do not start the engine.
3. Power on the Scanner: Power on the OBD2 scanner.
4. Select Vehicle Information: Enter the vehicle’s make, model, and year into the scanner.
5. Read Trouble Codes: Select the “Read Codes” or “Diagnostic Codes” option on the scanner.
6. View Trouble Codes: The scanner will display any stored trouble codes.
7. Erase Trouble Codes (Optional): After repairing the identified issues, you can erase the trouble codes using the “Erase Codes” option on the scanner.

10. Contact OBD2-SCANNER.EDU.VN for Assistance

If you’re still facing issues or need expert advice, don’t hesitate to contact OBD2-SCANNER.EDU.VN. Our team of experienced technicians is ready to help you diagnose and resolve any OBD2-related problems with your 2008 Cadillac Escalade.

• Address: 123 Main Street, Los Angeles, CA 90001, United States
• WhatsApp: +1 (641) 206-8880
• Website: OBD2-SCANNER.EDU.VN

Whether you’re dealing with a blown fuse, a malfunctioning OBD2 port, or complex diagnostic challenges, we’re here to provide the support and solutions you need. Contact us today for personalized assistance and reliable service.

By understanding the fuse locations, diagnostic procedures, and common issues associated with the OBD2 port in your 2008 Cadillac Escalade, you can effectively troubleshoot and maintain your vehicle’s electrical system. Remember to always consult your vehicle’s service manual and seek professional help when needed to ensure accurate and safe repairs.

By following these steps and utilizing the resources available at OBD2-SCANNER.EDU.VN, you can confidently tackle OBD2 port issues and keep your 2008 Cadillac Escalade running smoothly.
