What Does Bluedriver OBD2 MIL Status Indicate About Your Car?

The Bluedriver Obd2 Mil Status is a crucial indicator of your vehicle’s health, reporting whether the check engine light is on or off and providing data on warm-ups, distance traveled, and engine runtime since diagnostic trouble codes (DTCs) were cleared. Using this information effectively with your OBD2 scanner from OBD2-SCANNER.EDU.VN can save you time and money by helping you accurately diagnose and address potential issues. This detailed guide will help you understand how to use the Bluedriver OBD2 scanner to interpret the MIL status, empowering you to make informed decisions about your vehicle’s maintenance. Consider this your comprehensive resource for all things related to OBD2 diagnostics, engine performance, and automotive repair!

1. What is Bluedriver OBD2 MIL Status and Why Is It Important?

The Bluedriver OBD2 MIL status refers to the data provided by the Bluedriver scan tool regarding the Malfunction Indicator Lamp (MIL), commonly known as the check engine light. This status is crucial because it indicates whether the vehicle’s onboard diagnostic system has detected any issues and also provides insights into recent diagnostic activities, such as code clearing.

• Meaning of MIL Status: The MIL status reflects the current state of the check engine light and provides additional data points to help assess the vehicle’s condition. According to a study by the University of California, Berkeley’s Transportation Sustainability Research Center, understanding the MIL status can significantly improve diagnostic accuracy.

• Importance for Vehicle Health: By monitoring the MIL status, you can quickly identify potential problems and take corrective action, preventing minor issues from escalating into major repairs. Data points such as the number of warm-ups, distance traveled, and engine runtime since codes were cleared can reveal if the vehicle has had recent diagnostic interventions, which may indicate underlying problems.

2. Understanding the Key Components of the MIL Status

The Bluedriver OBD2 scanner provides several key data points related to the MIL status, each offering unique insights into the vehicle’s recent history and current condition.

2.1. Check Engine Light On/Off

The most basic indicator is whether the check engine light is currently illuminated. A lit check engine light means the vehicle’s computer has detected a problem.

• Interpreting the Light: A lit check engine light doesn’t always mean a severe problem. It could be anything from a loose gas cap to a major engine malfunction. The University of Michigan Transportation Research Institute emphasizes that prompt diagnosis is crucial to prevent further damage.

• Action Steps: Use the Bluedriver OBD2 scanner to read the diagnostic trouble codes (DTCs) stored in the vehicle’s computer. These codes will provide more specific information about the nature of the problem.

2.2. Number of Warm-Ups Since DTCs Cleared

This data point indicates how many times the engine has reached its operating temperature since the last time the diagnostic trouble codes were cleared.

• Definition: A warm-up is typically defined as the engine coolant temperature rising a minimum of 20°C (40°F) after the engine is started and reaching a minimum of 70°C (160°F), or 60°C (140°F) for diesel engines.

• Why It Matters: If the number of warm-ups is low, it may suggest that the codes were recently cleared. This could be a red flag, especially when buying a used car, as it might indicate that the seller is trying to hide underlying issues.

2.3. Distance Traveled Since DTCs Cleared

This metric shows the total distance the vehicle has traveled since the diagnostic trouble codes were last cleared.

• Significance: Similar to the number of warm-ups, a short distance traveled since the codes were cleared can be suspicious. If the distance is minimal, it suggests that the codes were recently reset, potentially masking existing problems. A study by the National Institute for Automotive Service Excellence (ASE) indicates that monitoring this data can help detect fraudulent practices in used car sales.

• Practical Use: Compare this distance with the vehicle’s overall mileage. If the distance since the last code clear is significantly lower than expected, investigate further.

2.4. Engine Run Time Since DTCs Cleared

This parameter measures the total amount of time the engine has been running since the codes were last cleared.

• Understanding Engine Run Time: This is the actual time the engine was running, not just the elapsed time. For example, if codes were cleared two months ago, but the vehicle was only driven five hours per week, the engine runtime would display 40 hours, not the total elapsed hours.

• Diagnostic Value: A low engine runtime since the last code clear is another indicator that codes may have been recently cleared. This can be particularly useful in identifying vehicles that have had their diagnostic systems tampered with.

Engine Run Time Since DTCs Cleared

3. How to Use the Bluedriver OBD2 Scanner to Check MIL Status

Using the Bluedriver OBD2 scanner to check the MIL status is a straightforward process. Here’s a step-by-step guide:

1. Connect the Bluedriver: Plug the Bluedriver scanner into the OBD2 port of your vehicle. The port is typically located under the dashboard on the driver’s side.

2. Pair with Your Smartphone: Ensure Bluetooth is enabled on your smartphone or tablet. Open the Bluedriver app and follow the instructions to pair your device with the scanner.

3. Access MIL Status: Once connected, navigate to the “MIL Status” or “Readiness Monitors” section in the app. This section will display the current status of the check engine light and the relevant data points (warm-ups, distance, runtime).

4. Interpret the Data: Analyze the displayed data to determine if there are any potential issues. Look for inconsistencies or unusually low values that might indicate recent code clearing.

5. Read Diagnostic Trouble Codes (DTCs): If the check engine light is on, read the stored DTCs to identify the specific problem. The Bluedriver app will provide a description of each code, helping you understand the issue.

6. Further Diagnostics: Use the additional features of the Bluedriver app to perform further diagnostics, such as viewing live sensor data and accessing repair reports.

4. Interpreting the Data: What is Considered Suspicious?

Knowing what to look for is crucial when interpreting the MIL status data. Here are some scenarios that should raise suspicion:

4.1. Check Engine Light Recently Turned Off

If the check engine light was recently turned off, it could indicate that someone cleared the codes to hide an underlying problem.

• Clues: Low values for warm-ups, distance traveled, and engine runtime since the last code clear.

• Example: Suppose you’re inspecting a used car, and the Bluedriver shows only 5 warm-ups and 50 miles since the codes were cleared. This is a strong indication that the codes were recently reset.

4.2. Multiple Readiness Monitors Not Complete

The “Smog Check” or “Readiness Monitors” section of the Bluedriver app displays the status of various emissions tests. If multiple tests are listed as “Not Complete,” it could mean the codes were recently cleared.

• Why It Matters: After codes are cleared, the vehicle needs to be driven under various conditions for the ECM to gather enough data to determine whether the tests have passed or failed. If many tests are incomplete, the vehicle hasn’t been driven long enough to properly evaluate the systems.

• Practical Advice: The Environmental Protection Agency (EPA) advises that potential buyers should be wary of vehicles with multiple incomplete readiness monitors, as this could indicate hidden problems.

Smog Check

4.3. Discrepancies in Vehicle History

Check the vehicle’s maintenance records and history report. If there are discrepancies between the reported mileage and the data from the Bluedriver, it could be a sign of tampering.

• Cross-Reference Data: Use services like Carfax or AutoCheck to verify the vehicle’s history. Compare the reported mileage with the distance traveled since the codes were cleared.

• Red Flags: If the vehicle history report shows recent repairs or issues that are not reflected in the current MIL status, it’s a cause for concern.

4.4. Unusual Engine Performance

Pay attention to how the engine is running. If you notice any unusual noises, vibrations, or performance issues, it could indicate an underlying problem, even if the check engine light is off.

• Symptoms to Watch For: Rough idling, stalling, decreased fuel economy, and unusual exhaust smells.

• Professional Inspection: If you suspect any issues, have the vehicle inspected by a qualified mechanic.

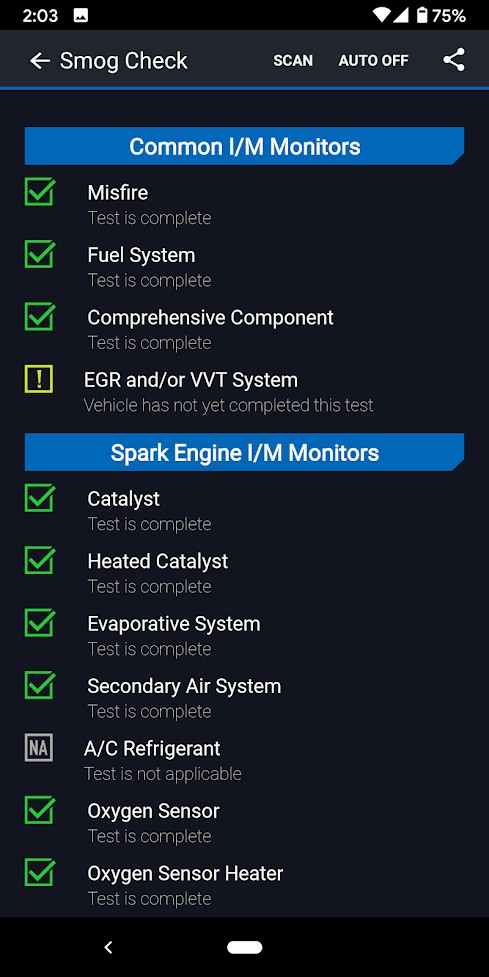

5. Using Smog Check Feature for Further Investigation

If the vehicle does not support the specific data points for warm-ups, distance, and runtime, you can still use the “Smog Check” or “Readiness Monitors” feature to check for indications of recently cleared codes.

5.1. How Smog Check Works

When codes are cleared, all vehicle emissions tests are reset and will display a status of “Not Complete.” To update the test status, the vehicle must be driven under different conditions (town, highway, etc.) so that the ECM can gather sufficient data to determine whether the tests have passed or failed.

5.2. Interpreting Smog Check Results

If multiple tests under “Smog Check” are listed as “Not Complete,” this may indicate that codes have recently been cleared.

• Common Readiness Monitors: These include misfire monitor, fuel system monitor, catalyst monitor, oxygen sensor monitor, evaporative system monitor, and EGR system monitor.

• Acceptable Number of Incomplete Monitors: Generally, it is acceptable for one or two monitors to be incomplete, especially if the vehicle has not been driven extensively since the last code clear. However, if more than two monitors are incomplete, it raises suspicion.

6. Advanced Diagnostic Techniques with Bluedriver OBD2

The Bluedriver OBD2 scanner offers advanced diagnostic features that go beyond simply reading the MIL status and DTCs. These features can help you pinpoint the root cause of the problem and assess the overall health of the vehicle.

6.1. Live Data Streaming

The live data streaming feature allows you to monitor various sensor readings in real-time. This can be invaluable in diagnosing intermittent problems or identifying issues that don’t trigger a DTC.

• Key Sensors to Monitor: Engine coolant temperature, oxygen sensor readings, mass airflow (MAF) sensor data, and fuel trim values.

• Analyzing Live Data: Look for anomalies or inconsistencies in the sensor readings. For example, a faulty oxygen sensor may show erratic voltage fluctuations, or a malfunctioning MAF sensor may provide inaccurate airflow readings.

6.2. Freeze Frame Data

Freeze frame data captures a snapshot of the sensor readings at the moment a DTC was triggered. This can provide valuable context for diagnosing the problem.

• Accessing Freeze Frame Data: The Bluedriver app allows you to view the freeze frame data associated with each DTC.

• Using Freeze Frame Data: Analyze the sensor readings captured in the freeze frame data to understand the conditions under which the DTC was triggered. This can help you identify the underlying cause of the problem.

6.3. Enhanced Diagnostics

The Bluedriver offers enhanced diagnostic capabilities for certain vehicle makes and models. This includes access to additional diagnostic data and tests that are not available with standard OBD2 scanners.

• Benefits of Enhanced Diagnostics: More detailed information about the vehicle’s systems, access to manufacturer-specific DTCs, and the ability to perform advanced tests, such as injector balance tests and compression tests.

• Check Compatibility: Verify that the Bluedriver supports enhanced diagnostics for your specific vehicle make and model.

7. Common OBD2 Trouble Codes and Their Meanings

Understanding common OBD2 trouble codes can help you quickly identify and address potential issues. Here’s a table of some frequent codes and their typical meanings:

Code	Description	Possible Causes
P0171	System Too Lean (Bank 1)	Vacuum leak, faulty oxygen sensor, dirty MAF sensor, low fuel pressure
P0300	Random Misfire Detected	Faulty spark plugs, ignition coils, fuel injectors, vacuum leaks, low compression
P0420	Catalyst System Efficiency Below Threshold	Faulty catalytic converter, exhaust leaks, faulty oxygen sensors
P0442	Evaporative Emission Control System Leak Detected	Loose gas cap, faulty purge valve, cracked EVAP hoses
P0401	Insufficient EGR Flow	Clogged EGR valve, faulty EGR pressure sensor, vacuum leaks
P0113	Intake Air Temperature Sensor Circuit High Input	Faulty IAT sensor, wiring issues
P0011	A Camshaft Position Timing Over-Advanced or System Performance (Bank 1)	Low oil level, faulty camshaft position sensor, timing chain issues, faulty oil control valve

8. Real-World Examples of Diagnosing Issues with Bluedriver OBD2

Let’s look at a few real-world examples of how the Bluedriver OBD2 scanner can be used to diagnose vehicle issues:

8.1. Case Study 1: Identifying a Hidden Engine Problem

A used car buyer was considering purchasing a 2015 Honda Civic. Using the Bluedriver OBD2 scanner, they checked the MIL status and noticed that the check engine light was off, but the number of warm-ups since the last code clear was only 3, and the distance traveled was just 20 miles.

• Suspicion: This raised suspicion that the seller might have cleared the codes to hide a problem.

• Further Investigation: The buyer used the Bluedriver to run a smog check, and it showed that several readiness monitors were not complete.

• Outcome: The buyer had the vehicle inspected by a mechanic, who found a faulty oxygen sensor. The seller agreed to repair the issue before the sale.

8.2. Case Study 2: Diagnosing an Intermittent Misfire

A car owner was experiencing an intermittent misfire in their 2018 Ford F-150. The check engine light would come on occasionally, but then turn off.

• Using Bluedriver: The owner used the Bluedriver OBD2 scanner to read the stored DTCs, which indicated a random misfire (P0300).

• Live Data Analysis: They used the live data streaming feature to monitor the engine’s performance. They noticed that the misfire occurred when the engine was under load, and the fuel trim values were fluctuating erratically.

• Resolution: Based on the data, they suspected a faulty fuel injector. After replacing the injector, the misfire was resolved.

8.3. Case Study 3: Detecting an EVAP Leak

A driver noticed a fuel smell coming from their 2016 Toyota Camry. The check engine light was on, and they used the Bluedriver OBD2 scanner to read the DTCs.

• DTC Indication: The scanner showed a P0442 code, indicating a small evaporative emission control system leak.

• Troubleshooting Steps: The driver checked the gas cap and found that it was loose. After tightening the gas cap, they cleared the code and monitored the system.

• Final Result: The check engine light did not return, indicating that the loose gas cap was the cause of the EVAP leak.

9. Tips for Maintaining Your Vehicle’s OBD2 System

Proper maintenance of your vehicle’s OBD2 system can help you catch potential problems early and prevent costly repairs. Here are some tips to keep your OBD2 system in good working order:

• Regularly Check for Codes: Use your Bluedriver OBD2 scanner to check for stored DTCs, even if the check engine light is not on. This can help you identify potential issues before they become major problems.

• Keep Your Vehicle Properly Maintained: Follow the manufacturer’s recommended maintenance schedule, including oil changes, tune-ups, and filter replacements. This will help ensure that your vehicle’s systems are functioning optimally.

• Address Issues Promptly: If the check engine light comes on, don’t ignore it. Use the Bluedriver to read the DTCs and take corrective action as soon as possible.

• Use Quality Parts: When repairing your vehicle, use high-quality replacement parts. This will help ensure that the repairs are effective and long-lasting.

• Stay Informed: Keep up-to-date with the latest automotive technology and diagnostic techniques. This will help you better understand your vehicle’s systems and diagnose potential problems.

10. Choosing the Right OBD2 Scanner for Your Needs

While the Bluedriver OBD2 scanner is a popular choice, there are many other scanners available on the market. Here are some factors to consider when choosing an OBD2 scanner:

• Compatibility: Ensure that the scanner is compatible with your vehicle’s make and model.

• Features: Consider the features that are important to you, such as live data streaming, freeze frame data, and enhanced diagnostics.

• Ease of Use: Choose a scanner that is easy to use and has a user-friendly interface.

• Price: Set a budget and choose a scanner that offers the best value for your money.

• Reviews: Read reviews from other users to get an idea of the scanner’s performance and reliability.

11. The Future of OBD2 Technology

OBD2 technology is constantly evolving, with new features and capabilities being added all the time. Here are some trends to watch for in the future of OBD2 technology:

• Enhanced Connectivity: Future OBD2 systems will be more tightly integrated with smartphones and cloud-based services, allowing for remote diagnostics and monitoring.

• Advanced Data Analytics: OBD2 data will be used to develop more sophisticated predictive maintenance algorithms, helping vehicle owners anticipate and prevent potential problems.

• Integration with Electric Vehicles: OBD2 systems will be adapted to monitor the performance of electric vehicle components, such as batteries and electric motors.

• Cybersecurity: As vehicles become more connected, cybersecurity will become an increasingly important consideration. Future OBD2 systems will incorporate security features to prevent unauthorized access and tampering.

12. How OBD2-SCANNER.EDU.VN Can Help You

At OBD2-SCANNER.EDU.VN, we are dedicated to providing you with the most up-to-date information and resources on OBD2 technology. Whether you’re a seasoned mechanic or a DIY enthusiast, we can help you diagnose and repair your vehicle with confidence.

12.1. Expert Advice

Our team of experienced automotive technicians is available to answer your questions and provide expert advice on OBD2 diagnostics. Whether you’re struggling to interpret a DTC or need help choosing the right OBD2 scanner, we’re here to help.

12.2. Comprehensive Guides

We offer a wide range of comprehensive guides and tutorials on OBD2 technology, covering everything from basic concepts to advanced diagnostic techniques. Our guides are written in clear, easy-to-understand language, making them accessible to users of all skill levels.

12.3. Product Recommendations

We provide unbiased product recommendations to help you choose the right OBD2 scanner for your needs. We evaluate scanners from all the leading manufacturers and provide detailed reviews and comparisons.

12.4. Repair Services

If you’re unable to diagnose or repair your vehicle yourself, we offer professional repair services at our state-of-the-art facility. Our technicians are highly trained and experienced in all aspects of automotive repair.

13. FAQs About Bluedriver OBD2 MIL Status

13.1. What does MIL stand for in OBD2?

MIL stands for Malfunction Indicator Lamp, which is commonly known as the check engine light.

13.2. How do I check my car’s MIL status?

You can check your car’s MIL status using an OBD2 scanner like the Bluedriver. Connect the scanner to your vehicle’s OBD2 port and use the scanner’s app to view the MIL status.

13.3. Is it safe to drive with the check engine light on?

It depends on the severity of the problem. If the check engine light is flashing, it indicates a serious issue that requires immediate attention. If the light is on but not flashing, it’s generally safe to drive, but you should have the vehicle inspected as soon as possible.

13.4. Can a loose gas cap cause the check engine light to come on?

Yes, a loose gas cap is a common cause of the check engine light coming on. Make sure your gas cap is properly tightened.

13.5. How do I clear the check engine light after making a repair?

You can clear the check engine light using an OBD2 scanner. Connect the scanner to your vehicle and use the scanner’s app to clear the stored DTCs. However, if the underlying problem is not resolved, the light will likely come back on.

13.6. What are readiness monitors?

Readiness monitors are tests that the vehicle’s computer performs to ensure that the emissions systems are functioning properly. These monitors must be completed before the vehicle can pass a smog check.

13.7. How long does it take for readiness monitors to complete?

It depends on the vehicle and the driving conditions. Generally, it takes several days of driving under various conditions for all the readiness monitors to complete.

13.8. Can I use any OBD2 scanner to check the MIL status?

Yes, most OBD2 scanners can be used to check the MIL status. However, some scanners offer more advanced features, such as live data streaming and enhanced diagnostics.

13.9. What should I do if my car fails a smog check?

If your car fails a smog check, you will need to have it repaired and retested. The smog check report will indicate the reason for the failure.

13.10. Where can I find more information about OBD2 technology?

You can find more information about OBD2 technology on websites like OBD2-SCANNER.EDU.VN, as well as in automotive repair manuals and online forums.
