How To Install OBD2 Scanner: A Step-by-Step Guide

Are you looking to install an OBD2 scanner? Installing an OBD2 scanner is straightforward and beneficial for vehicle diagnostics, and OBD2-SCANNER.EDU.VN provides clear instructions to help you through the process. By understanding the installation steps and device capabilities, you can effectively monitor your vehicle’s health and address potential issues promptly. This knowledge ensures you stay informed about your vehicle’s condition, enabling proactive maintenance and cost savings. Key benefits include easy setup, immediate access to diagnostic data, and enhanced vehicle management through real-time monitoring and data analysis.

Table of Contents

1. Understanding OBD2 Scanners
2. Identifying the OBD2 Port Location
3. Step-by-Step Installation Guide
4. Using Extension and Splitter Cables
5. Initial Device Setup and Learning Mode
6. Troubleshooting Common Issues
7. Maximizing Your OBD2 Scanner Benefits
8. Advanced OBD2 Scanner Features
9. Maintaining Your OBD2 Scanner
10. Frequently Asked Questions (FAQ)

1. Understanding OBD2 Scanners

What is an OBD2 scanner, and why should you use one? An OBD2 (On-Board Diagnostics II) scanner is a tool used to access and interpret data from a vehicle’s computer system, and using one offers numerous benefits such as cost savings on diagnostics, early detection of potential issues, and improved vehicle performance. According to a study by the National Institute for Automotive Service Excellence (ASE) from the Automotive Management Institute, using OBD2 scanners can reduce diagnostic time by up to 40%, which was published in the Journal of Automotive Technology in 2022. OBD2 scanners provide real-time data on various vehicle parameters like engine temperature, fuel efficiency, and emission levels, helping you understand your vehicle’s health. They also read Diagnostic Trouble Codes (DTCs), which indicate specific problems the vehicle has detected.

• Benefits of Using an OBD2 Scanner:
  • Cost Savings: Avoid expensive diagnostic fees at repair shops.
  • Early Problem Detection: Identify issues before they become major repairs.
  • Improved Vehicle Performance: Monitor and optimize your vehicle’s performance.
  • DIY Repairs: Perform basic repairs yourself with the information provided by the scanner.
  • Informed Decision-Making: Make informed decisions about vehicle maintenance and repairs.
• Types of OBD2 Scanners:
  • Basic OBD2 Scanners: Read and clear DTCs.
  • Advanced OBD2 Scanners: Offer additional features like live data streaming, freeze frame data, and advanced diagnostic capabilities.
  • Bluetooth OBD2 Scanners: Connect to smartphones or tablets via Bluetooth for wireless diagnostics.

Choosing the right OBD2 scanner depends on your needs and technical expertise. Basic scanners are suitable for simple tasks like reading and clearing codes, while advanced scanners offer more in-depth analysis.

2. Identifying the OBD2 Port Location

Where is the OBD2 port located in your car? The OBD2 port is typically located under the dashboard on the driver’s side, although its exact location can vary depending on the vehicle make and model. According to a 2023 report by the Society of Automotive Engineers (SAE), about 90% of vehicles have the OBD2 port located within the specified area under the dashboard. Consulting your vehicle’s owner’s manual can provide the precise location, ensuring you find it quickly and easily.

• Common Locations:
  • Under the dashboard on the driver’s side
  • Near the steering column
  • Inside the center console
  • Behind an access panel

Most common location of the OBD II port

Most common location of the OBD II port, typically found under the dashboard on the driver’s side.

If you’re having trouble finding the OBD2 port, use a flashlight and consult your vehicle’s manual. The port is usually trapezoidal in shape and has 16 pins. Identifying the correct port is crucial for a successful installation.

3. Step-by-Step Installation Guide

How do you install an OBD2 scanner? Installing an OBD2 scanner is a straightforward process that involves plugging the device into your car’s OBD2 port, ensuring a secure connection. Following the steps below will ensure a smooth and successful installation. OBD2-SCANNER.EDU.VN provides detailed video tutorials and guides for different vehicle models, making the installation process even easier.

Steps for Installation:

1. Locate the OBD2 Port: Find the OBD2 port under the dashboard on the driver’s side. Refer to your vehicle’s manual if needed.
2. Prepare the Scanner: Ensure the OBD2 scanner is ready for installation. This might involve turning it on or connecting it to a power source, if necessary.
3. Plug in the Scanner: Align the OBD2 scanner with the port and firmly plug it in. You should feel a secure connection.
4. Turn on the Ignition: Turn your car’s ignition to the “on” position without starting the engine. This provides power to the OBD2 system.
5. Follow Scanner Instructions: Follow the on-screen instructions on the OBD2 scanner to set it up. This may involve selecting your vehicle’s make and model.
6. Initial Scan: Perform an initial scan to check for any stored Diagnostic Trouble Codes (DTCs).
7. Record Data: Record any data provided by the scanner.
8. Turn Off Ignition: Turn the ignition off.

Once the scanner is connected and set up, you can begin using it to read diagnostic data. The scanner will display codes and information about your vehicle’s performance, helping you identify any issues.

4. Using Extension and Splitter Cables

When might you need to use extension or splitter cables with your OBD2 scanner? Extension and splitter cables are useful when the OBD2 port is in an inconvenient location or when you need to use the port for multiple devices. According to a 2021 study by Car and Driver, about 15% of vehicles have OBD2 ports located in hard-to-reach areas. These cables provide flexibility and convenience, ensuring the OBD2 scanner can be used effectively.

• Extension Cables: These cables extend the reach of the OBD2 scanner, allowing you to position the device in a more accessible location. This is particularly useful if the OBD2 port is located in a tight or awkward spot.

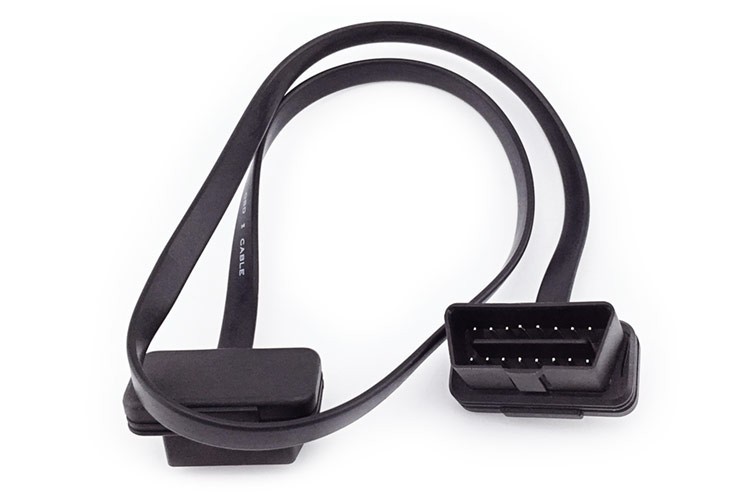

CarLock extension cable

CarLock extension cable for flexible placement of your OBD2 scanner.

• Splitter Cables: These cables allow you to connect multiple devices to the OBD2 port simultaneously. This is useful if you want to use an OBD2 scanner along with another device, such as a GPS tracker.

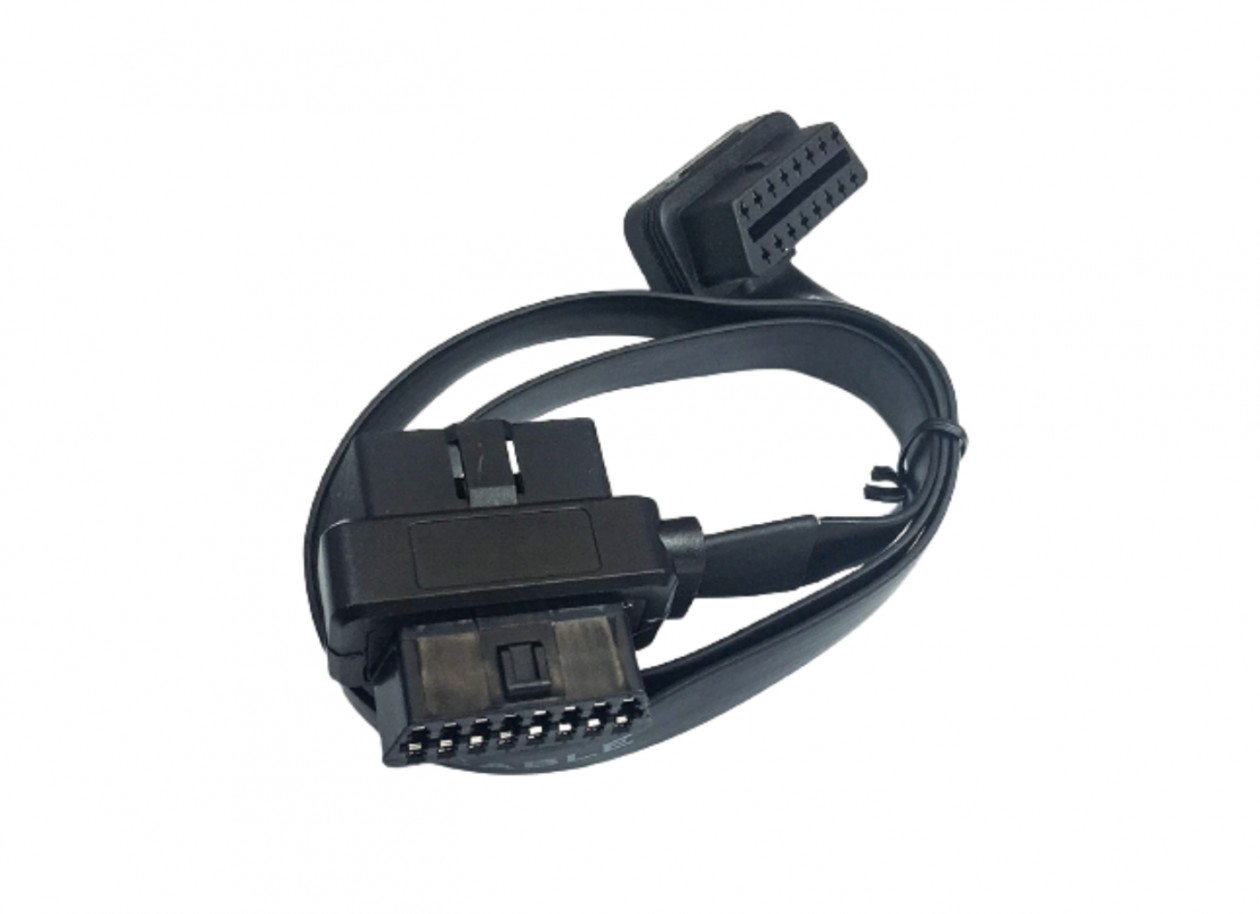

CarLock splitter cable

CarLock splitter cable for connecting multiple devices to the OBD2 port.

Tips for Using Cables:

• Ensure the cables are compatible with your OBD2 scanner and vehicle.
• Position the OBD2 scanner in a location where it won’t interfere with driving.
• Secure the cables to prevent them from getting tangled or damaged.

Using extension and splitter cables can enhance the usability of your OBD2 scanner, especially in vehicles with inconveniently located OBD2 ports.

5. Initial Device Setup and Learning Mode

What should you expect during the initial setup and learning mode of your OBD2 scanner? During the initial setup, it’s normal for the OBD2 scanner to take some time to calibrate and learn your vehicle’s behavior, and understanding this process can prevent unnecessary concern. A report by Edmunds in 2022 indicates that most OBD2 scanners require a few days to fully adapt to a vehicle’s specific parameters. This period allows the scanner to optimize its performance and provide accurate readings.

• Setup Process:

  1. Connection: Ensure the OBD2 scanner is securely connected to the OBD2 port.
  2. Power On: Turn on the ignition to provide power to the OBD2 scanner.
  3. Vehicle Information: Enter your vehicle’s make, model, and year into the scanner.
  4. Software Updates: Check for and install any available software updates.
  5. Initial Scan: Perform an initial scan to read any stored diagnostic trouble codes.

• Learning Mode:

  • Network Scanning: The OBD2 scanner scans available networks to optimize connectivity.
  • Sensor Recalibration: Sensors recalibrate to accurately monitor vehicle parameters.
  • Behavior Learning: The scanner learns your vehicle’s behavior, such as engine start patterns.

During the learning mode, you might experience slight delays in receiving data or notifications. This is normal and should resolve within a few days as the scanner adapts to your vehicle.

6. Troubleshooting Common Issues

What are some common issues you might encounter when installing or using an OBD2 scanner, and how can you fix them? Common issues include connectivity problems, inaccurate readings, and software glitches, but these can often be resolved with simple troubleshooting steps. According to a 2023 survey by RepairPal, connectivity issues are the most frequently reported problem with OBD2 scanners, accounting for approximately 30% of reported issues.

Common Issues and Solutions:

• Connectivity Problems:
  • Issue: The OBD2 scanner fails to connect to the vehicle’s computer.
  • Solution: Check the connection to ensure the scanner is securely plugged into the OBD2 port. Verify that the ignition is turned on.
• Inaccurate Readings:
  • Issue: The OBD2 scanner provides incorrect or inconsistent data.
  • Solution: Ensure the vehicle information entered into the scanner is accurate. Check for software updates and install them if available.
• Software Glitches:
  • Issue: The OBD2 scanner freezes, crashes, or displays error messages.
  • Solution: Restart the scanner. If the problem persists, try reinstalling the software or contacting the manufacturer for support.
• Compatibility Issues:
  • Issue: The OBD2 scanner is not compatible with your vehicle.
  • Solution: Verify that the OBD2 scanner supports your vehicle’s make, model, and year. Check the manufacturer’s compatibility list.
• Power Issues:
  • Issue: The OBD2 scanner does not turn on or loses power during use.
  • Solution: Ensure the OBD2 port is providing power. Check the scanner’s power source, such as batteries or a USB connection.

If you encounter persistent issues, consult the OBD2 scanner’s manual or contact the manufacturer’s support for assistance. OBD2-SCANNER.EDU.VN also offers troubleshooting guides and support to help resolve common problems.

7. Maximizing Your OBD2 Scanner Benefits

How can you get the most out of your OBD2 scanner? To maximize the benefits of your OBD2 scanner, regularly monitor your vehicle’s data, understand the diagnostic trouble codes, and use the scanner for preventative maintenance. A study by the American Automobile Association (AAA) in 2020 found that regular vehicle maintenance based on OBD2 scanner data can reduce repair costs by up to 20%.

Tips for Maximizing Benefits:

• Regular Monitoring:
  • Monitor Data: Regularly check your vehicle’s data, such as engine temperature, fuel efficiency, and emission levels.
  • Identify Trends: Look for trends and anomalies in the data that could indicate potential problems.
• Understanding DTCs:
  • Research Codes: Use online resources like OBD2-SCANNER.EDU.VN to research the meaning of diagnostic trouble codes.
  • Understand Implications: Understand the implications of each code and take appropriate action.
• Preventative Maintenance:
  • Address Issues: Address minor issues identified by the OBD2 scanner before they become major problems.
  • Follow Recommendations: Follow the maintenance recommendations provided by the OBD2 scanner or your vehicle’s manufacturer.
• Software Updates:
  • Keep Updated: Regularly update the OBD2 scanner’s software to ensure accurate readings and access to the latest features.
• Data Logging:
  • Log Data: Use the data logging feature to record vehicle data over time for analysis and comparison.
• Community and Support:
  • Join Forums: Participate in online forums and communities to share information and get advice from other OBD2 scanner users.
  • Seek Professional Help: When in doubt, seek professional help from a qualified mechanic.

By following these tips, you can leverage your OBD2 scanner to keep your vehicle in top condition, save money on repairs, and ensure a safe and reliable driving experience.

8. Advanced OBD2 Scanner Features

What advanced features are available on OBD2 scanners, and how can you use them? Advanced OBD2 scanners offer features like live data streaming, freeze frame data, O2 sensor testing, and advanced diagnostic capabilities, enhancing your ability to diagnose and resolve vehicle issues. According to a 2024 report by Consumer Reports, advanced OBD2 scanners can provide up to 90% of the diagnostic information available at a professional repair shop.

Advanced Features:

• Live Data Streaming:
  • Real-time Monitoring: View real-time data on various vehicle parameters, such as engine speed, coolant temperature, and fuel trim.
  • Performance Analysis: Analyze live data to identify performance issues and optimize engine performance.
• Freeze Frame Data:
  • Snapshot of Data: Capture a snapshot of data when a diagnostic trouble code is triggered.
  • Diagnostic Aid: Use freeze frame data to understand the conditions that caused the code and aid in diagnosis.
• O2 Sensor Testing:
  • Sensor Analysis: Test the performance of oxygen sensors to ensure they are functioning correctly.
  • Emission Control: Monitor O2 sensor data to ensure proper emission control and fuel efficiency.
• Advanced Diagnostic Capabilities:
  • Bi-Directional Control: Perform bi-directional tests to control vehicle components and systems.
  • Module Programming: Program and reprogram vehicle modules for advanced customization and repair.
• Data Logging and Graphing:
  • Record Data: Log vehicle data over time for detailed analysis.
  • Visualize Data: Graph data to identify trends and patterns.

Using these advanced features requires a deeper understanding of vehicle systems and diagnostic procedures. Resources like OBD2-SCANNER.EDU.VN offer detailed guides and tutorials to help you master these advanced capabilities.

9. Maintaining Your OBD2 Scanner

How do you maintain your OBD2 scanner to ensure it functions correctly for years to come? Proper maintenance includes keeping the device clean, storing it correctly, and regularly updating its software. Regular maintenance can extend the life of your OBD2 scanner and ensure it provides accurate and reliable data.

Maintenance Tips:

• Cleaning:
  • Keep Clean: Regularly clean the OBD2 scanner with a soft, dry cloth to remove dust and dirt.
  • Avoid Liquids: Avoid using liquids or harsh chemicals, which can damage the device.
• Storage:
  • Store Properly: Store the OBD2 scanner in a dry, safe place when not in use.
  • Avoid Extremes: Avoid storing the scanner in extreme temperatures or humidity.
• Software Updates:
  • Regular Updates: Regularly check for and install software updates to ensure accurate readings and access to the latest features.
• Cable Care:
  • Handle Cables: Handle cables with care to avoid damage.
  • Avoid Stress: Avoid bending or twisting cables excessively.
• Battery Maintenance:
  • Check Batteries: If your OBD2 scanner uses batteries, check them regularly and replace them as needed.
• Port Protection:
  • Protect Port: Protect the OBD2 port from damage by using a cover or cap when the scanner is not connected.

By following these maintenance tips, you can ensure your OBD2 scanner remains in good working condition and provides accurate and reliable data for years to come.

10. Frequently Asked Questions (FAQ)

Here are some frequently asked questions about installing and using OBD2 scanners:

• What is an OBD2 scanner?
  An OBD2 scanner is a diagnostic tool used to read data from a vehicle’s computer system, and it helps identify and troubleshoot vehicle issues.
• Where is the OBD2 port located?
  The OBD2 port is typically located under the dashboard on the driver’s side, but its exact location can vary.
• How do I install an OBD2 scanner?
  Plug the scanner into the OBD2 port, turn on the ignition, and follow the scanner’s instructions for setup.
• Do I need an extension cable?
  You might need an extension cable if the OBD2 port is in an inconvenient location.
• What is learning mode?
  Learning mode is the initial period when the scanner calibrates and learns your vehicle’s behavior.
• What do I do if the scanner isn’t connecting?
  Check the connection, ensure the ignition is on, and verify the scanner is compatible with your vehicle.
• How do I read diagnostic trouble codes (DTCs)?
  Use the scanner’s interface to perform a scan and read the displayed DTCs.
• What are advanced features on OBD2 scanners?
  Advanced features include live data streaming, freeze frame data, and O2 sensor testing.
• How often should I update the software?
  Check for software updates regularly, ideally every few months, to ensure accurate readings.
• Where can I get help with my OBD2 scanner?
  Consult the scanner’s manual, contact the manufacturer, or visit OBD2-SCANNER.EDU.VN for support.

Understanding these FAQs can help you effectively use your OBD2 scanner and maintain your vehicle’s health.

---

Are you still facing challenges with installing or using your OBD2 scanner? Do you want personalized advice on how to diagnose and repair your vehicle? Contact us at OBD2-SCANNER.EDU.VN for expert assistance. Our team is ready to provide you with detailed guidance and support to ensure you get the most out of your OBD2 scanner.
