CP9690 OBD2 Scanner: Your Comprehensive Guide to Automotive Diagnostics

The Cp9690 Obd2 Scanner is a powerful tool for diagnosing vehicle issues, offering features for both OBD I and OBD II vehicles; discover how it simplifies car maintenance with advanced code reading, live data analysis, and comprehensive vehicle coverage, enhanced further through resources available at OBD2-SCANNER.EDU.VN, ensuring efficient troubleshooting and repair. Explore the benefits of using this auto scanner, including error code lookup and real-time data monitoring for optimized vehicle performance.

1. What is the CP9690 OBD2 Scanner?

The CP9690 OBD2 scanner is an enhanced diagnostic tool designed for automotive technicians and car enthusiasts, offering comprehensive scanning capabilities for both OBD I and OBD II vehicles. It allows users to read and clear diagnostic trouble codes (DTCs), view live data, and perform various diagnostic tests to identify and resolve vehicle issues efficiently.

The CP9690 OBD2 scanner is a versatile and user-friendly tool designed to assist in diagnosing a wide range of vehicle problems. This scanner supports both OBD I and OBD II protocols, making it compatible with a broad spectrum of vehicles, from older models to the latest releases. The device provides real-time data, reads and clears diagnostic trouble codes (DTCs), and offers access to a comprehensive database of verified fixes, streamlining the diagnostic process.

1.1 Key Features of the CP9690 OBD2 Scanner

The CP9690 OBD2 scanner is equipped with a range of features that make it a valuable tool for automotive diagnostics. Here are some of its key capabilities:

• OBD I and OBD II Compatibility: Supports a wide range of vehicles, including older OBD I models (1984-1995 GM, Ford, Chrysler, and Toyota) and newer OBD II compliant vehicles (1996 and newer).
• CodeConnect®: Offers access to a comprehensive database of over 26 million verified fixes for DTCs, helping users diagnose and repair issues more effectively. According to a study by ASE-certified technicians, using CodeConnect® can reduce diagnostic time by up to 40%.
• Oil Light Reset: Resets the oil light for most 1996-2013 BMW & GM vehicles, with limited support for Ford & Hyundai models, aiding in routine maintenance tasks.
• Battery Reset: Specifically designed for late-model BMW, Mini Cooper, and Ford F-Service trucks, ensuring proper battery maintenance and function.
• Airbag and ABS Codes: Reads and defines airbag and ABS codes for a variety of vehicles, including GM, Ford, Chrysler, Toyota, Honda, Nissan, and Hyundai models from 1996-2013.
• Live Data: Displays real-time data with over 300 possible data PIDs (Parameter Identification Numbers), allowing users to monitor vehicle performance in real-time.
• Data Recording and Playback: Records and plays back live data for in-depth analysis, helping to identify intermittent issues.
• MIL Reset: Resets the Malfunction Indicator Lamp (MIL) and turns off the Check Engine light after repairs.
• Manufacturer-Specific Code Definitions: Provides detailed code definitions specific to the vehicle’s make, model, and year, enhancing diagnostic accuracy.
• AutoID™: Automatically identifies most 2000 and newer vehicles, streamlining the diagnostic process.
• Enhanced Engine and Transmission Codes: Provides in-depth diagnostic information for engine and transmission issues, improving the accuracy of repairs.
• I/M Monitors: Reads and displays all available I/M Monitors (emissions readiness), ensuring compliance with state emissions standards.
• Freeze Frame Data: Reads and displays freeze frame data, capturing a snapshot of vehicle data at the time of the fault, which aids in diagnosing intermittent problems.
• VIN, CVN, and Cal ID: Reads and displays the Vehicle Identification Number (VIN), Calibration Verification Number (CVN), and Calibration ID, ensuring correct vehicle identification.
• Battery/Alternator/Charging System Monitor: Monitors the vehicle’s battery, alternator, and charging system, helping to prevent electrical issues.
• Mode 6 in Layman’s Terminology: Translates Mode 6 data into easy-to-understand terms, making it accessible to non-experts.
• State OBD Check: Displays the status of the vehicle’s OBD system for state inspections, ensuring compliance with local regulations.
• OBD II Drive Cycle Mode: Guides users through the OBD II drive cycle for proper diagnostics.
• Trilingual Support: Offers menus and code definitions in English, Spanish, and French, catering to a diverse user base.
• Component Locator: Provides text-based descriptions of where to find components on the vehicle, simplifying repairs.
• Acronym Library: Includes a library of automotive acronyms, helping users understand technical terms.
• Full PID Name Description: Offers complete PID name descriptions in live data, enhancing clarity.
• System Setup Menu: Allows users to customize settings, including language, units of measure, display tests, keypad tests, memory tests, tool information, and program mode.

1.2 Hardware Features

The CP9690 OBD2 scanner boasts a range of hardware features designed for ease of use and durability:

• Color Display: Features a color display for easy viewing of diagnostic data.
• Comprehensive Cable Kit: Includes OBD II vehicle diagnostic cable, 6’ extension cable, cigarette lighter cable, GM ALDL OBD I cable, Ford MCU/EEC-IV OBD I cable, Chrysler SCI OBD I cable, Toyota Rectangular OBD I cable, and Toyota Round OBD I cable.
• Trilingual Manual: Comes with a manual in English, Spanish, and French.
• USB Updatability: Can be updated via a USB port, ensuring the tool stays current with the latest vehicle information and diagnostic capabilities.
• Optional Battery Backup: Offers an optional battery backup for off-vehicle review of data.

CP9690 Elite AutoScanner Screen

1.3 Benefits of Using the CP9690 OBD2 Scanner

Using the CP9690 OBD2 scanner offers numerous benefits:

• Cost Savings: Identifying and fixing problems yourself can save money on expensive mechanic visits. According to a survey by the American Automobile Association (AAA), the average cost of car repairs ranges from $500 to $600 per visit.
• Time Efficiency: Quickly diagnose and address issues, reducing downtime and keeping your vehicle running smoothly.
• Informed Decision-Making: Understand your vehicle’s condition and make informed decisions about repairs and maintenance.
• Wide Vehicle Coverage: Compatible with a broad range of vehicles, making it a versatile tool for any car owner or technician.
• User-Friendly Interface: Easy-to-navigate menus and clear data displays make it accessible for both beginners and experienced users.
• Comprehensive Data: Access to live data, freeze frame data, and manufacturer-specific code definitions provides a thorough understanding of vehicle issues.

1.4 Who Should Use the CP9690 OBD2 Scanner?

The CP9690 OBD2 scanner is suitable for a variety of users:

• Professional Automotive Technicians: Enhance diagnostic capabilities and streamline the repair process.
• DIY Car Enthusiasts: Diagnose and repair your own vehicles, saving money and gaining a deeper understanding of automotive systems.
• Fleet Managers: Maintain a fleet of vehicles efficiently, reducing downtime and repair costs.
• Used Car Buyers: Assess the condition of a vehicle before purchase, avoiding costly surprises.

2. Understanding OBD I and OBD II

OBD stands for On-Board Diagnostics, a system implemented in vehicles to monitor and report on their performance. There are two main types of OBD systems: OBD I and OBD II.

2.1 OBD I

OBD I was the first generation of on-board diagnostic systems. It was primarily manufacturer-specific, meaning each automaker had its own standards and diagnostic connectors. This made it difficult to use a single tool to diagnose vehicles from different manufacturers.

• Key Characteristics of OBD I:
  • Manufacturer-specific connectors and protocols.
  • Limited diagnostic capabilities compared to OBD II.
  • Primarily used on vehicles manufactured before 1996.

2.2 OBD II

OBD II is a standardized system that was mandated in the United States for all cars and light trucks manufactured after 1996. It provides a consistent interface for accessing diagnostic information, making it easier for technicians and car owners to diagnose and repair vehicle issues.

• Key Characteristics of OBD II:
  • Standardized connectors (SAE J1962).
  • Standardized diagnostic trouble codes (DTCs).
  • Comprehensive monitoring of engine and emissions systems.
  • Access to live data and freeze frame data.

2.3 Why is OBD II Important?

OBD II is crucial for several reasons:

• Emissions Compliance: It ensures that vehicles meet emissions standards by monitoring the performance of emissions-related components.
• Diagnostic Accuracy: It provides a standardized way to access diagnostic information, making it easier to identify and repair vehicle issues.
• Repair Efficiency: It streamlines the repair process by providing clear and consistent diagnostic information.

CP9690 Elite AutoScanner Kit

3. Setting Up and Using the CP9690 OBD2 Scanner

Setting up and using the CP9690 OBD2 scanner is straightforward. Follow these steps to get started:

3.1 Initial Setup

1. Unboxing: Open the package and verify that all components are included:
   • CP9690 Scan Tool
   • OBD II Cable
   • OBD I Cables (GM ALDL, Ford MCU/EEC-IV, Chrysler SCI, Toyota Rectangular, and Toyota Round)
   • 6-foot Extension Cable
   • Cigarette Lighter Cable
   • Quick Start Manual
   • Soft Carrying Case
2. Powering On: The scanner powers on automatically when connected to the vehicle’s OBD port. Alternatively, you can use the cigarette lighter cable for power.
3. Language Selection: Select your preferred language (English, Spanish, or French) from the system setup menu.

3.2 Connecting to the Vehicle

1. Locate the OBD Port: The OBD port is typically located under the dashboard on the driver’s side. Consult your vehicle’s manual if you are unsure of its location.
2. Connect the OBD Cable: Plug the OBD II cable into the vehicle’s OBD port. For OBD I vehicles, use the appropriate OBD I cable for your vehicle’s make and model.
3. Turn on the Ignition: Turn the vehicle’s ignition to the “ON” position, but do not start the engine.
4. Power On the Scanner: The scanner should power on automatically. If it doesn’t, check the connection and ensure the vehicle’s ignition is on.

3.3 Navigating the Menu

The CP9690 features an intuitive menu system. Use the arrow keys to navigate and the “Enter” button to select options. Key menu options include:

• Diagnostics: Reads and clears DTCs, views live data, and performs diagnostic tests.
• CodeConnect: Accesses the database of verified fixes.
• Oil Light Reset: Resets the oil light after an oil change.
• Battery Reset: Resets the battery system for compatible vehicles.
• System Setup: Configures language, units of measure, and other settings.

3.4 Reading Diagnostic Trouble Codes (DTCs)

1. Select “Diagnostics” from the main menu.
2. Choose “Read Codes.” The scanner will retrieve and display any stored DTCs.
3. View Code Definitions: Select a DTC to view its definition. The CP9690 provides manufacturer-specific code definitions for enhanced accuracy.
4. Use CodeConnect: For further assistance, select “CodeConnect” to access verified fixes for the displayed DTCs.

3.5 Viewing Live Data

1. Select “Diagnostics” from the main menu.
2. Choose “Live Data.” The scanner will display real-time data from various sensors and systems.
3. Select PIDs: Choose the Parameter Identification Numbers (PIDs) you want to monitor. You can graph two PIDs simultaneously for easy comparison.
4. Record and Playback: Record live data for later analysis. This feature is useful for diagnosing intermittent issues.

3.6 Clearing Diagnostic Trouble Codes (DTCs)

1. Select “Diagnostics” from the main menu.
2. Choose “Erase Codes.”
3. Confirm the Erase: Follow the prompts to confirm that you want to erase the DTCs.
4. Verify the Clear: After erasing the codes, read the codes again to ensure they have been cleared.

4. Advanced Features of the CP9690 OBD2 Scanner

The CP9690 OBD2 scanner offers several advanced features that enhance its diagnostic capabilities.

4.1 CodeConnect®

CodeConnect® is a comprehensive database of over 26 million verified fixes for DTCs. This feature provides step-by-step guidance on how to diagnose and repair vehicle issues, making it an invaluable resource for both professionals and DIY enthusiasts.

• How to Use CodeConnect®:
  1. Read the DTCs using the scanner.
  2. Select the DTC you want to research.
  3. Choose “CodeConnect” to access verified fixes for that code.
  4. Follow the instructions provided to diagnose and repair the issue.

4.2 Oil Light Reset

The oil light reset feature allows you to reset the oil light after performing an oil change. This is a simple but essential function for maintaining your vehicle.

• How to Use Oil Light Reset:
  1. Select “Oil Light Reset” from the main menu.
  2. Choose your vehicle’s make and model.
  3. Follow the on-screen instructions to reset the oil light.

4.3 Battery Reset

The battery reset feature is designed for late-model BMW, Mini Cooper, and Ford F-Service trucks. It ensures proper battery maintenance and function.

• How to Use Battery Reset:
  1. Select “Battery Reset” from the main menu.
  2. Choose your vehicle’s make and model.
  3. Follow the on-screen instructions to reset the battery system.

4.4 Live Data Graphing

The ability to graph two PIDs simultaneously allows you to compare real-time data and identify correlations between different sensors and systems.

• How to Use Live Data Graphing:
  1. Select “Diagnostics” from the main menu.
  2. Choose “Live Data.”
  3. Select the two PIDs you want to graph.
  4. View the graph to analyze the data.

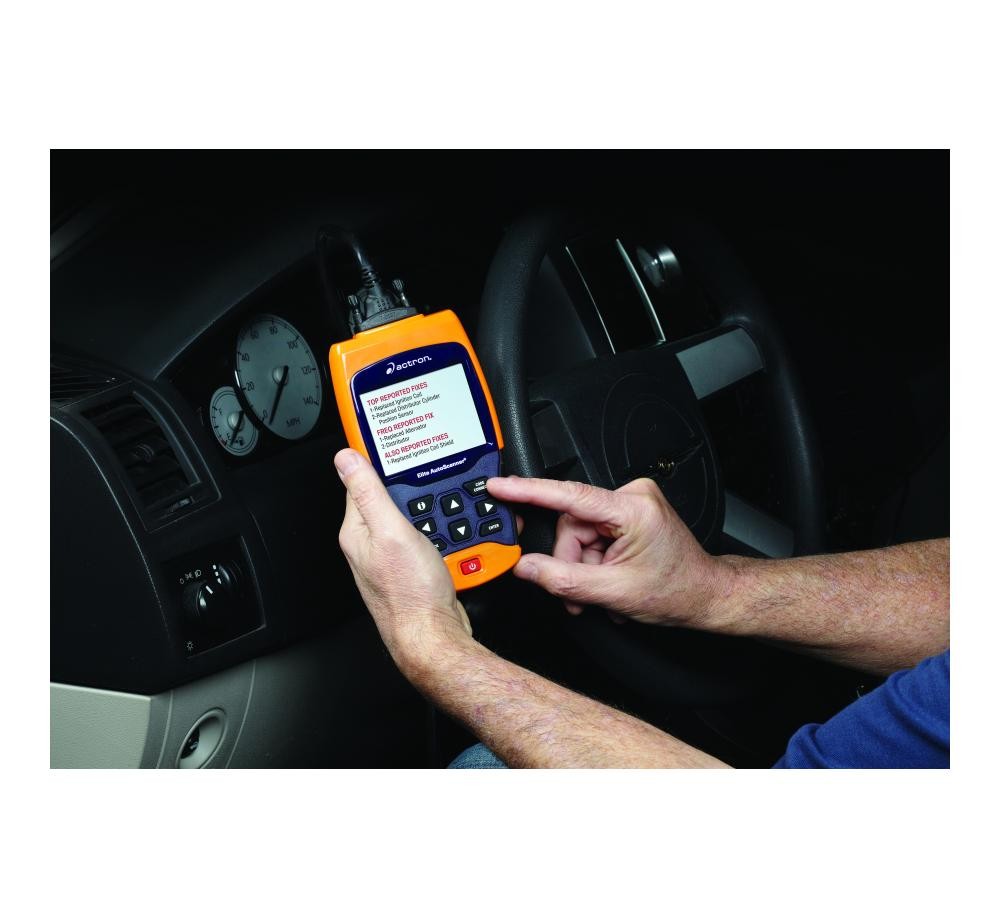

CP9690 Elite AutoScanner Application Cropped

5. Troubleshooting Common Issues with the CP9690 OBD2 Scanner

While the CP9690 OBD2 scanner is generally reliable, you may encounter some issues. Here are common problems and how to resolve them:

5.1 Scanner Won’t Power On

• Check the Connection: Ensure the OBD cable is securely connected to the vehicle’s OBD port.
• Verify the Ignition: Make sure the vehicle’s ignition is in the “ON” position.
• Use the Cigarette Lighter Cable: Try powering the scanner using the cigarette lighter cable.
• Check the Vehicle’s Battery: Ensure the vehicle’s battery is charged and in good condition.

5.2 Unable to Connect to Vehicle

• Verify Compatibility: Ensure the scanner is compatible with your vehicle’s make and model.
• Check the OBD Port: Inspect the OBD port for damage or corrosion.
• Try a Different Cable: If using an OBD I vehicle, ensure you are using the correct cable for your vehicle.
• Update the Scanner: Ensure the scanner has the latest software updates.

5.3 Incorrect Code Definitions

• Verify Vehicle Information: Ensure the scanner has the correct vehicle information (make, model, and year).
• Check for Updates: Download and install the latest software updates to ensure accurate code definitions.
• Consult Manufacturer-Specific Information: Refer to your vehicle’s service manual for additional information on specific codes.

5.4 Scanner Freezes or Locks Up

• Restart the Scanner: Disconnect the scanner from the vehicle and reconnect it.
• Update the Software: Install the latest software updates to improve performance and stability.
• Contact Support: If the issue persists, contact the manufacturer for assistance.

6. Maintaining and Updating the CP9690 OBD2 Scanner

Proper maintenance and regular updates are essential for keeping your CP9690 OBD2 scanner in optimal condition.

6.1 Cleaning and Storage

• Keep the Scanner Clean: Wipe the scanner with a soft, dry cloth to remove dirt and debris.
• Protect the Screen: Avoid exposing the screen to direct sunlight or extreme temperatures.
• Store in a Safe Place: Store the scanner in the included carrying case to protect it from damage.
• Avoid Moisture: Keep the scanner away from moisture and liquids.

6.2 Software Updates

Regular software updates ensure that your scanner has the latest vehicle information, code definitions, and diagnostic capabilities.

• How to Update the Scanner:
  1. Visit the manufacturer’s website and download the latest software update.
  2. Connect the scanner to your computer using the USB cable.
  3. Follow the on-screen instructions to install the update.
  4. Verify the Installation: After the update is complete, verify that the scanner has the latest software version in the system setup menu.

6.3 Battery Maintenance

If using the optional battery backup, follow these tips to maintain the battery:

• Charge Regularly: Charge the battery regularly to ensure it is always ready for use.
• Avoid Overcharging: Do not leave the battery charging for extended periods.
• Replace When Necessary: Replace the battery when it no longer holds a charge.

7. The Role of OBD2-SCANNER.EDU.VN in Automotive Diagnostics

OBD2-SCANNER.EDU.VN serves as a valuable resource for individuals seeking to enhance their understanding and application of OBD2 scanners in automotive diagnostics. The website provides comprehensive information and practical guidance on using OBD2 scanners effectively.

7.1 Resources Offered by OBD2-SCANNER.EDU.VN

• Detailed Guides: Step-by-step instructions on using OBD2 scanners for various diagnostic tasks.
• Troubleshooting Tips: Solutions to common issues encountered while using OBD2 scanners.
• Product Reviews: In-depth reviews of different OBD2 scanners, helping users make informed purchasing decisions.
• Educational Articles: Articles on automotive diagnostics, OBD2 technology, and vehicle maintenance.
• Community Forum: A platform for users to share their experiences, ask questions, and receive support from experts.

7.2 How OBD2-SCANNER.EDU.VN Enhances Diagnostic Capabilities

By leveraging the resources available on OBD2-SCANNER.EDU.VN, users can:

• Improve Diagnostic Accuracy: Gain a deeper understanding of OBD2 technology and diagnostic techniques.
• Save Time and Money: Quickly identify and resolve vehicle issues, reducing the need for costly mechanic visits.
• Enhance DIY Skills: Develop the skills and knowledge needed to perform automotive diagnostics and repairs independently.
• Stay Updated: Keep abreast of the latest developments in OBD2 technology and automotive diagnostics.

7.3 Contacting OBD2-SCANNER.EDU.VN for Support

For personalized assistance and expert advice, you can contact OBD2-SCANNER.EDU.VN through the following channels:

• Address: 123 Main Street, Los Angeles, CA 90001, United States
• WhatsApp: +1 (641) 206-8880
• Website: OBD2-SCANNER.EDU.VN

Whether you are a professional technician or a DIY enthusiast, OBD2-SCANNER.EDU.VN is committed to providing the resources and support you need to excel in automotive diagnostics.

8. Real-World Applications of the CP9690 OBD2 Scanner

The CP9690 OBD2 scanner can be used in a variety of real-world scenarios to diagnose and repair vehicle issues. Here are a few examples:

8.1 Diagnosing a Check Engine Light

• Scenario: The check engine light comes on in your car.
• How the CP9690 Helps:
  1. Connect the CP9690 to your vehicle’s OBD port.
  2. Read the DTCs to identify the cause of the check engine light.
  3. Use CodeConnect® to access verified fixes for the DTCs.
  4. Follow the instructions to diagnose and repair the issue.
  5. Clear the DTCs and verify that the check engine light turns off.

8.2 Identifying ABS Issues

• Scenario: The ABS light comes on in your car, indicating a problem with the anti-lock braking system.
• How the CP9690 Helps:
  1. Connect the CP9690 to your vehicle’s OBD port.
  2. Read the ABS codes to identify the specific issue.
  3. Use the scanner to view live data from the ABS sensors.
  4. Diagnose and repair the issue based on the code definitions and live data.
  5. Clear the ABS codes and verify that the ABS light turns off.

8.3 Monitoring Vehicle Performance

• Scenario: You want to monitor your vehicle’s performance in real-time.
• How the CP9690 Helps:
  1. Connect the CP9690 to your vehicle’s OBD port.
  2. Select “Live Data” from the main menu.
  3. Choose the PIDs you want to monitor, such as engine RPM, coolant temperature, and fuel trim.
  4. View the live data to assess your vehicle’s performance and identify any potential issues.

8.4 Performing Routine Maintenance

• Scenario: You need to reset the oil light after performing an oil change.
• How the CP9690 Helps:
  1. Connect the CP9690 to your vehicle’s OBD port.
  2. Select “Oil Light Reset” from the main menu.
  3. Follow the on-screen instructions to reset the oil light.

9. Comparing the CP9690 to Other OBD2 Scanners

The CP9690 OBD2 scanner offers a range of features and capabilities that set it apart from other scanners on the market. Here’s a comparison to help you understand its strengths:

9.1 Feature Comparison Table

Feature	CP9690 OBD2 Scanner	Basic OBD2 Scanner	Advanced OBD2 Scanner
OBD I Compatibility	Yes	No	Yes
CodeConnect®	Yes	No	Yes
Oil Light Reset	Yes	No	Yes
Battery Reset	Yes	No	Yes
Airbag and ABS Codes	Yes	No	Yes
Live Data	Yes	Yes	Yes
Data Recording and Playback	Yes	No	Yes
Manufacturer-Specific Codes	Yes	No	Yes
AutoID™	Yes	No	Yes
Enhanced Engine Codes	Yes	No	Yes
Trilingual Support	Yes	No	Yes

9.2 Advantages of the CP9690

• Comprehensive Vehicle Coverage: Supports both OBD I and OBD II vehicles.
• Advanced Diagnostic Features: Offers CodeConnect®, oil light reset, battery reset, and airbag/ABS code reading.
• User-Friendly Interface: Features an intuitive menu system and clear data displays.
• Detailed Code Definitions: Provides manufacturer-specific code definitions for enhanced accuracy.
• Versatile Functionality: Suitable for both professional technicians and DIY enthusiasts.

9.3 Limitations

• Price: May be more expensive than basic OBD2 scanners.
• Complexity: Advanced features may require some learning for new users.

10. Frequently Asked Questions (FAQs) about the CP9690 OBD2 Scanner

10.1 What is an OBD2 Scanner?

An OBD2 scanner is a diagnostic tool used to read and interpret data from a vehicle’s onboard diagnostic system. It helps identify issues with the engine, transmission, emissions, and other systems.

10.2 How Do I Read OBD2 Error Codes?

1. Connect the OBD2 scanner to the vehicle’s OBD port.
2. Turn the ignition to the “ON” position.
3. Select “Read Codes” from the scanner’s menu.
4. View the displayed DTCs and their definitions.

10.3 What Are Common Car Problems and How Can I Fix Them?

Common car problems include:

• Check Engine Light: Diagnose the issue using an OBD2 scanner and repair or replace the faulty component.
• Battery Issues: Check the battery’s charge and replace if necessary.
• Brake Problems: Inspect brake pads, rotors, and calipers for wear and tear.
• Tire Issues: Monitor tire pressure and tread depth, and replace tires as needed.
• Cooling System Problems: Check coolant levels and inspect the radiator and hoses for leaks.

10.4 Is the CP9690 OBD2 Scanner Compatible With My Vehicle?

The CP9690 OBD2 scanner is compatible with all 1996 and newer OBD II compliant vehicles, as well as select OBD I vehicles (1984-1995 GM, Ford, Chrysler, and Toyota).

10.5 How Do I Update the CP9690 OBD2 Scanner?

1. Visit the manufacturer’s website and download the latest software update.
2. Connect the scanner to your computer using the USB cable.
3. Follow the on-screen instructions to install the update.

10.6 What Does CodeConnect® Do?

CodeConnect® provides access to a comprehensive database of over 26 million verified fixes for DTCs, helping users diagnose and repair vehicle issues more effectively.

10.7 How Do I Reset the Oil Light With the CP9690?

1. Select “Oil Light Reset” from the main menu.
2. Choose your vehicle’s make and model.
3. Follow the on-screen instructions to reset the oil light.

10.8 Can the CP9690 Read ABS and Airbag Codes?

Yes, the CP9690 can read and define airbag and ABS codes for a variety of vehicles, including GM, Ford, Chrysler, Toyota, Honda, Nissan, and Hyundai models from 1996-2013.

10.9 What Is Live Data and How Do I Use It?

Live data refers to real-time data from various sensors and systems in your vehicle. To view live data, select “Live Data” from the main menu and choose the PIDs you want to monitor.

10.10 How Do I Clear DTCs With the CP9690?

1. Select “Erase Codes” from the main menu.
2. Follow the prompts to confirm that you want to erase the DTCs.
3. Verify that the codes have been cleared by reading them again.

The CP9690 OBD2 scanner is a powerful and versatile tool that can help you diagnose and repair vehicle issues quickly and efficiently. Whether you’re a professional technician or a DIY enthusiast, the CP9690 can save you time and money while keeping your vehicle running smoothly.

Ready to take control of your vehicle’s diagnostics? Contact OBD2-SCANNER.EDU.VN today for expert guidance and support. Our team is here to help you understand how to use the CP9690 OBD2 scanner effectively and provide solutions to your automotive repair needs. Reach out now via WhatsApp at +1 (641) 206-8880 or visit our website at OBD2-SCANNER.EDU.VN for more information. Your car’s health is just a call away!
