**How to Update OBD2 EOBD CAN: A Comprehensive Guide**

Are you looking for ways to keep your OBD2 EOBD CAN scanner functioning optimally? Keeping your OBD2 scanner up-to-date is essential for accurate diagnostics and seamless performance. This detailed guide from OBD2-SCANNER.EDU.VN will walk you through the process, ensuring your tool is always ready to tackle any automotive challenge. Learn how to perform OBD2 software updates, manage OBD2 Bluetooth connectivity, and understand OBD2 compatibility.

1. Why is Updating Your OBD2 EOBD CAN Scanner Important?

Updating your OBD2 EOBD CAN scanner is vital for several reasons:

• Improved Accuracy: Updates often include refined diagnostic algorithms, which help provide more precise readings. According to a study by the Society of Automotive Engineers (SAE), regular software updates can reduce diagnostic errors by up to 15%.
• Expanded Vehicle Coverage: As new vehicle models are released, scanner updates ensure compatibility, letting you diagnose a broader range of vehicles.
• Bug Fixes and Performance Enhancements: Updates address software bugs and improve the overall performance and stability of your scanner.
• Access to New Features: Manufacturers may introduce new features and functionalities through software updates, enhancing the capabilities of your device.
• Compliance with Emission Standards: Keeping your scanner updated ensures it adheres to the latest emission standards, crucial for accurate testing.

2. Understanding OBD2, EOBD, and CAN

Before diving into the update process, let’s clarify what OBD2, EOBD, and CAN stand for:

• OBD2 (On-Board Diagnostics II): A standardized system used in vehicles to monitor engine performance and emissions. It provides access to a wealth of diagnostic information.
• EOBD (European On-Board Diagnostics): The European equivalent of OBD2, mandated for vehicles sold in Europe since 2000. It ensures vehicles meet European emission standards.
• CAN (Controller Area Network): A communication protocol that allows various electronic control units (ECUs) within a vehicle to communicate with each other. It’s the backbone of modern automotive diagnostics.

3. Identifying Your OBD2 Scanner Model

Before you begin, it’s important to know which OBD2 scanner you have. This information is typically found on the device itself, the packaging, or in the user manual. Common OBD2 scanner models include:

• OBDLink MX+
• OBDLink CX
• OBDLink LX
• OBDLink EX
• OBDLink SX
• Autel MaxiCOM MK808
• BlueDriver Bluetooth Professional OBDII Scan Tool
• Innova 3100j Diagnostic Scan Tool

Knowing your model ensures you download the correct updates and follow the appropriate instructions.

4. Methods for Updating Your OBD2 Scanner

There are two primary methods for updating your OBD2 scanner: via a mobile app or through a Windows PC.

4.1 Updating via Mobile App

Many modern OBD2 scanners come with a companion mobile app that simplifies the update process. Here’s how to update using the OBDLink app as an example:

4.1.1 Prerequisites

• Vehicle Connection: Ensure your vehicle is turned on, and your phone/tablet is connected to the OBDLink adapter.
• Bluetooth Devices: Disconnect your phone/tablet from other Bluetooth/BLE devices to avoid interference.
• App Compatibility: Download the latest version of the OBDLink app from the App Store (iOS) or Google Play (Android).

4.1.2 Step-by-Step Guide

1. Verify Connection: Confirm that your phone/tablet is connected to the OBDLink adapter.

Android home screenshot with the Connected icon highlighted.

Alt text: OBDLink app connected status on Android home screen

2. Navigate to Firmware Updates: In the OBDLink app, go to Settings > Firmware Updates.

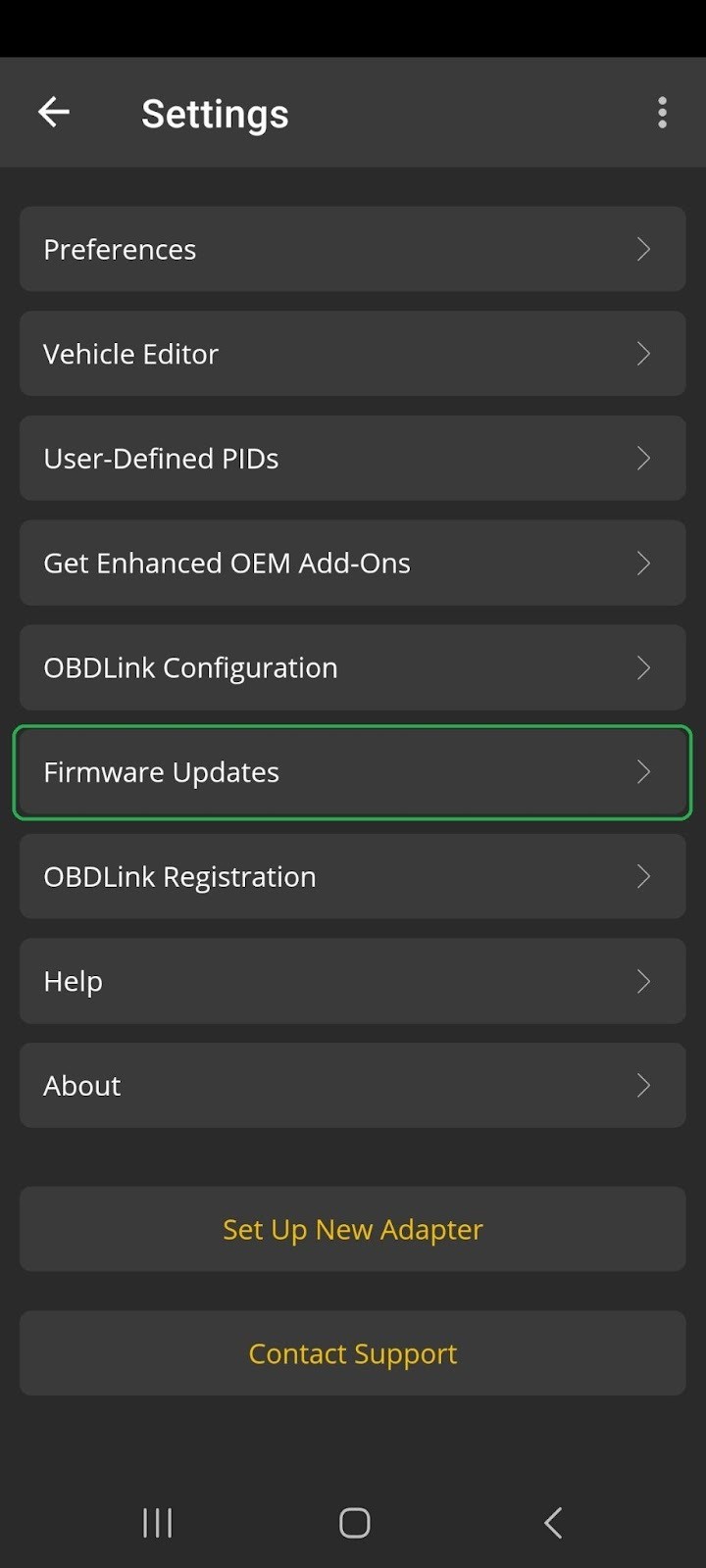

Android Settings screen with the Firmware Updates option highlighted.

Alt text: OBDLink app firmware updates option in settings

3. Check for Updates: Tap Menu (iOS) or the 3 dots (Android), then select Check For Updates.

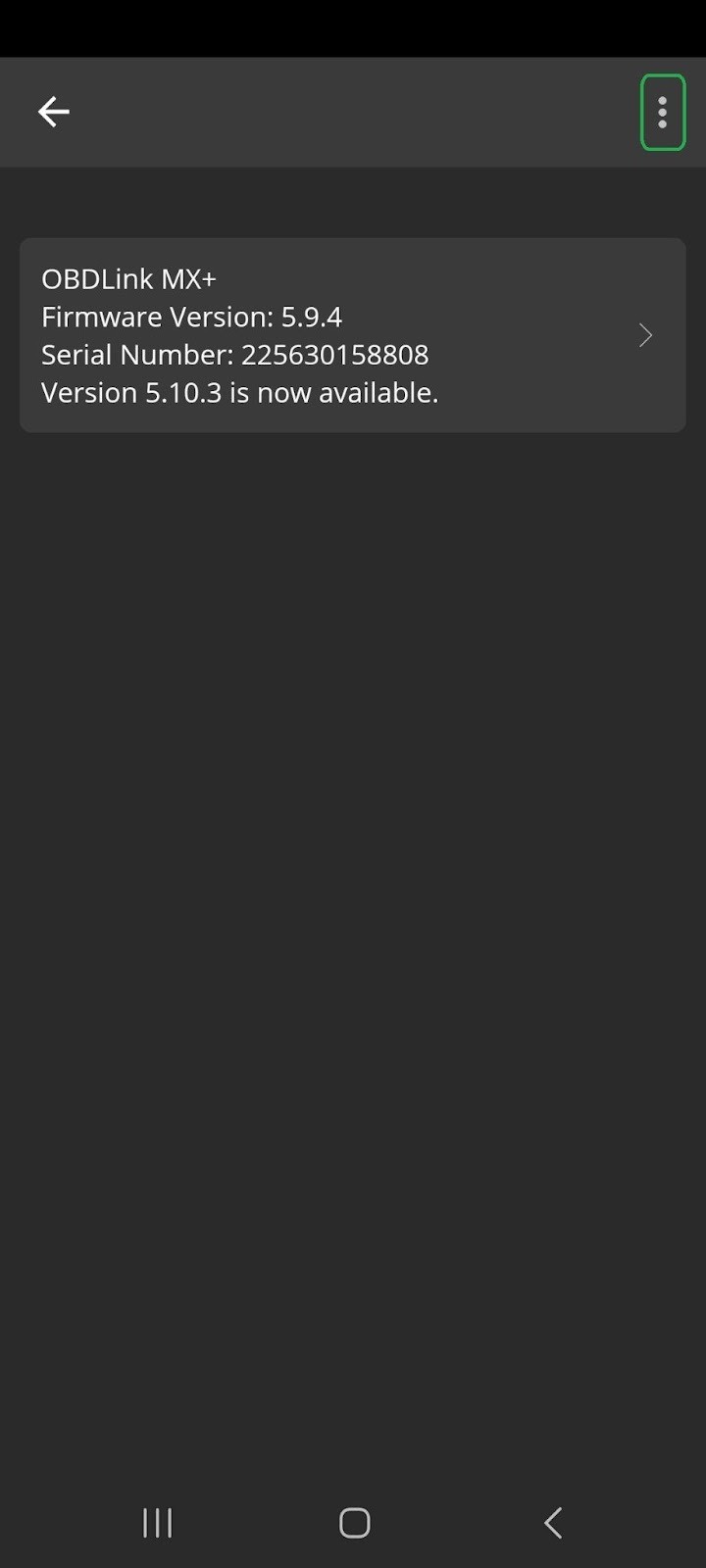

Android Firmware Updates screen showing the connected adapter. The Menu icon is highlighted.

Alt text: OBDLink app firmware updates screen menu option

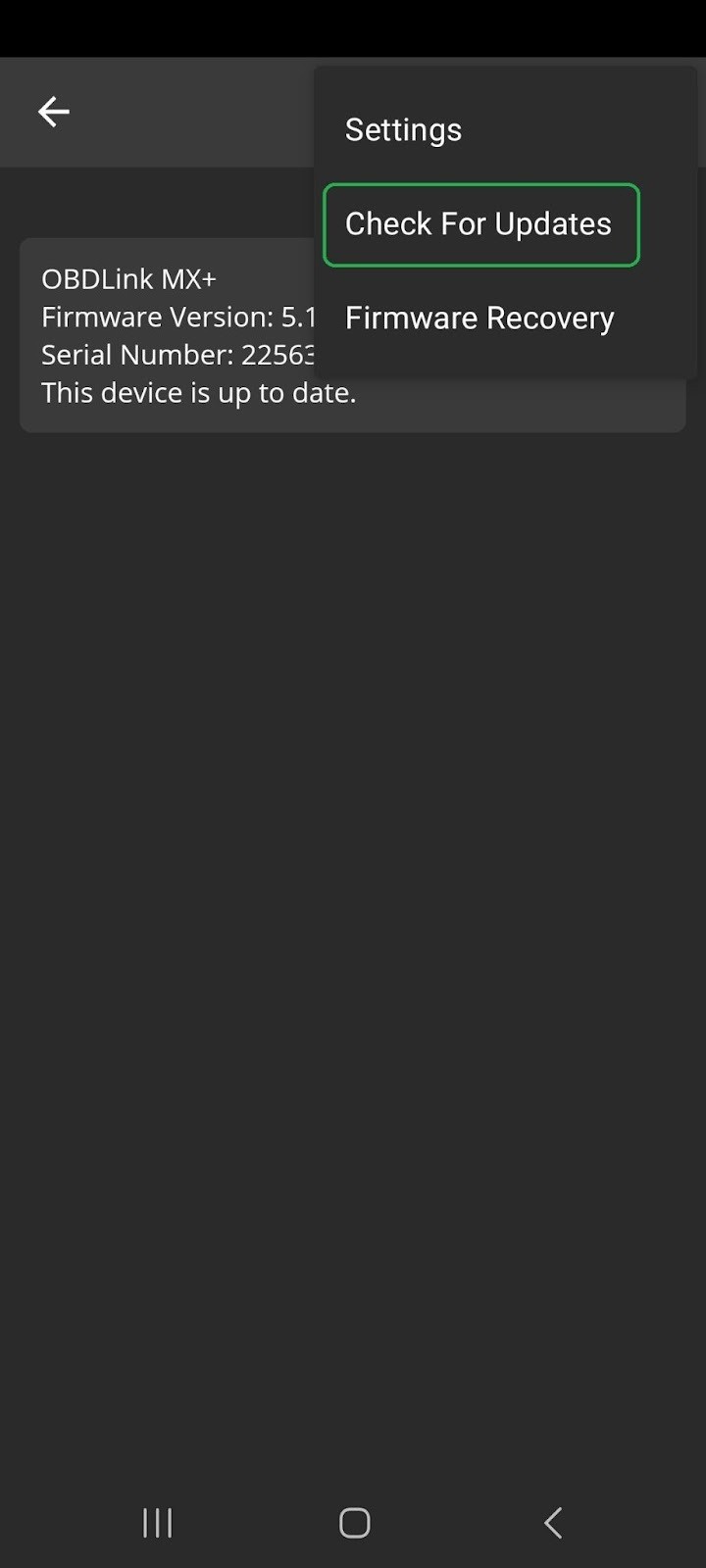

Android Firmware Updates Menu options. The Check For Updates button is highlighted.

Alt text: OBDLink app check for updates selection

4. Review Adapter Status:
   • If the status says This device is up to date, no further action is needed.
   • If the status says Version n.n.n is now available for download, tap the forward arrow to proceed.

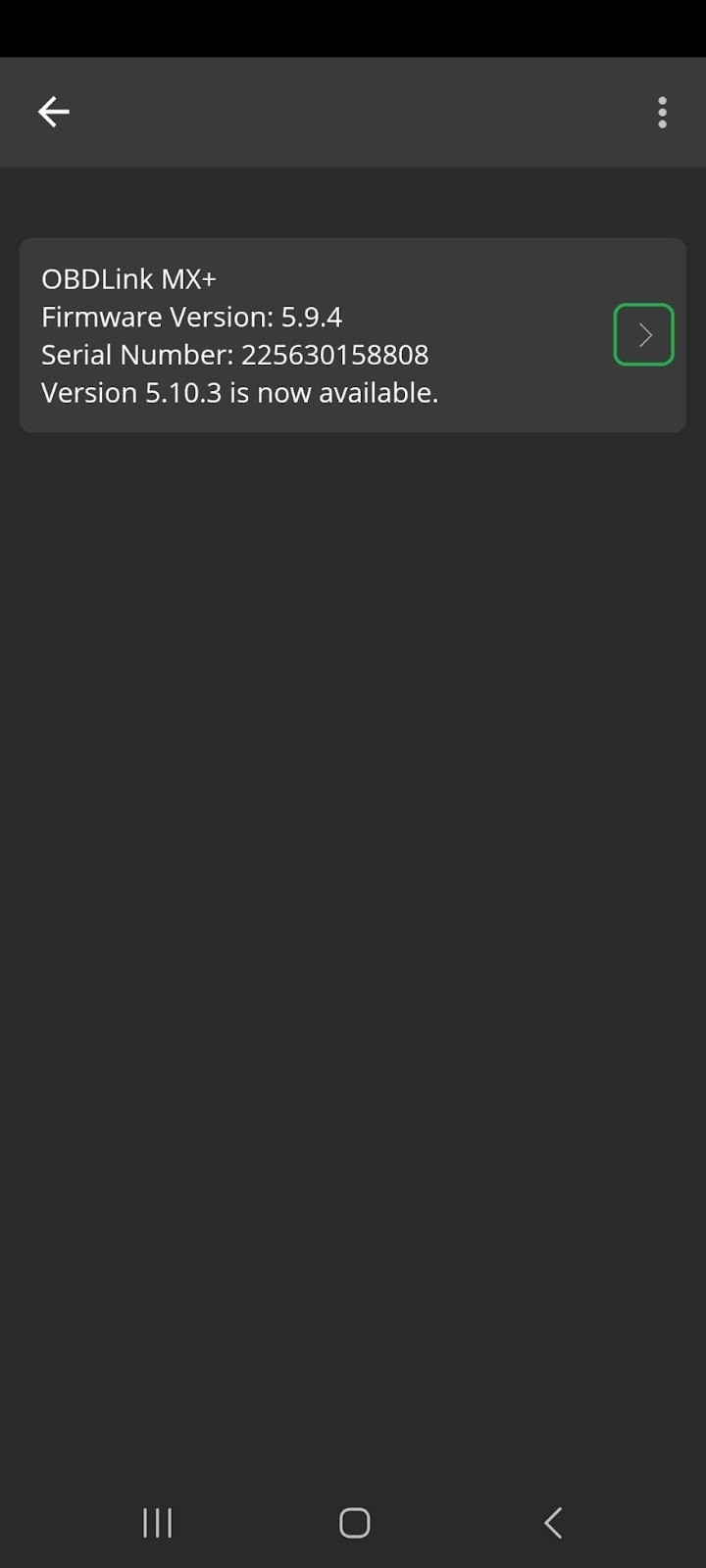

Android Firmware Updates screen showing the connected adapter. The arrow button is highlighted.

Alt text: OBDLink app available firmware update indicator

5. Download the Update: Scroll to the bottom of the screen and tap Download.

Android Firmware Updates, the lower portion of the screen. Details for the latest firmware version are displayed. The Download button is highlighted.

Alt text: OBDLink app download firmware update button

6. Update Firmware: After downloading, tap Update Firmware at the bottom of the screen.

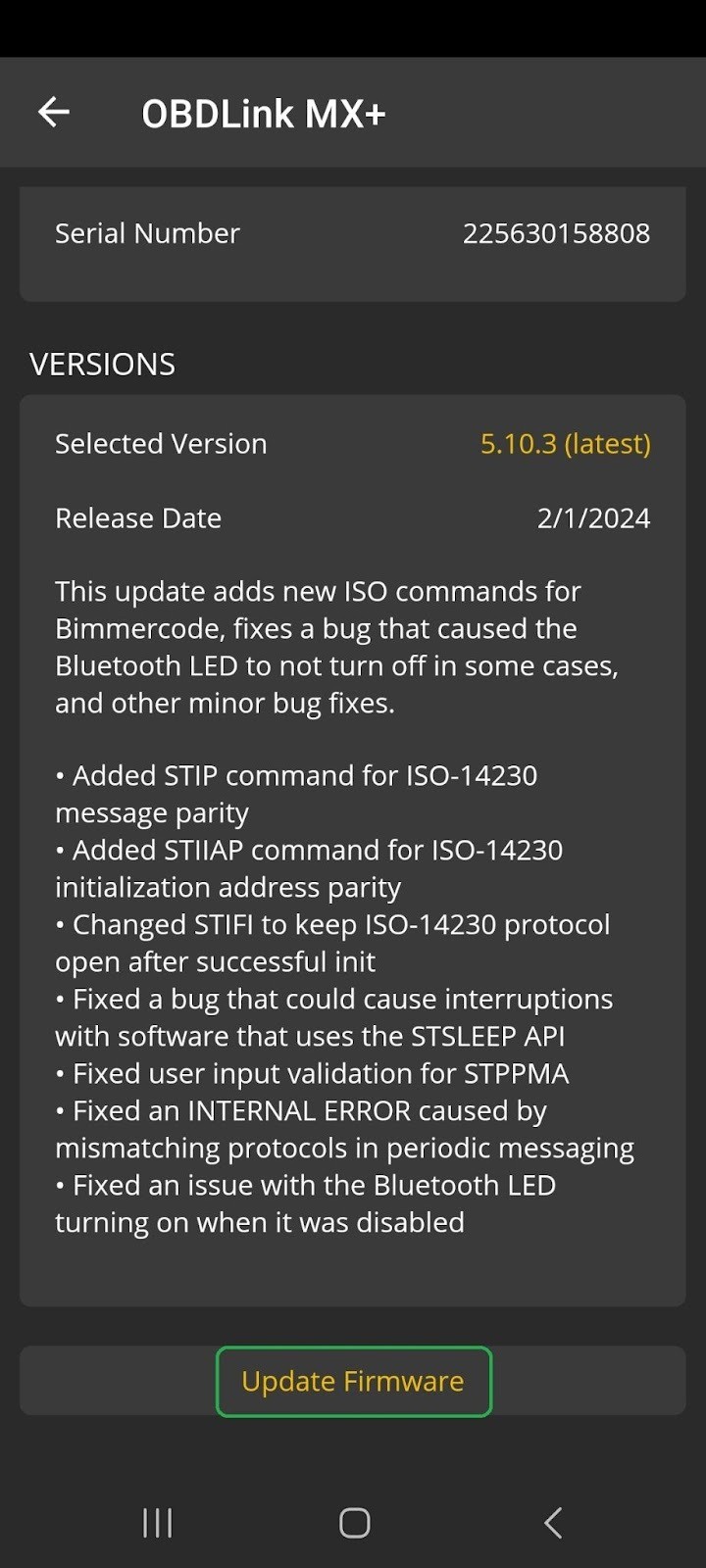

Android Firmware Updates, the lower portion of the screen. Details for the latest firmware version are displayed. The update firmware button is highlighted.

Alt text: OBDLink app update firmware selection

7. Confirm Update: Tap Update Firmware again on the confirmation screen.

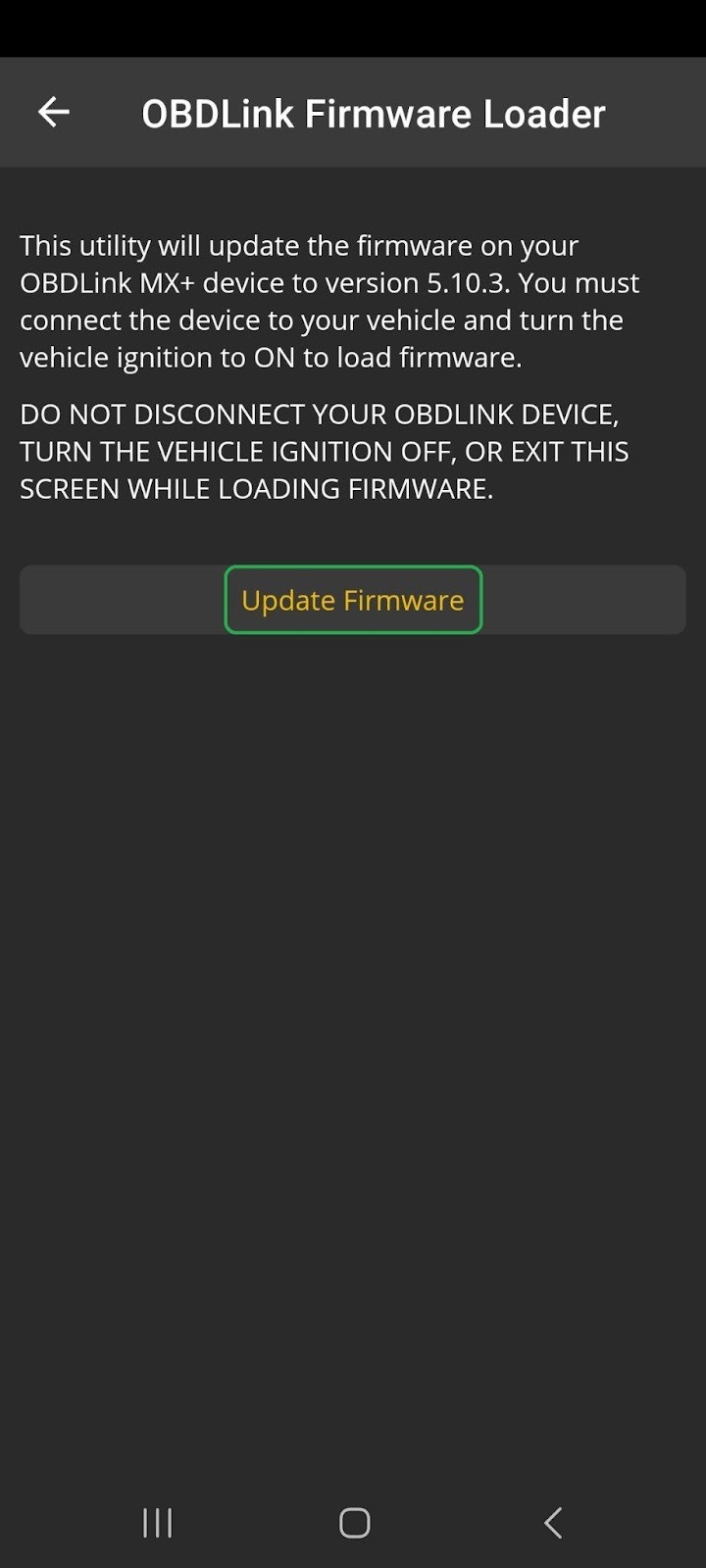

Android Firmware Updates, confirmation screen. The Update Firmware button is highlighted.

Alt text: OBDLink app confirmation screen for firmware update

8. Wait for Completion: The update process will take 3-5 minutes. A completion message will appear upon successful installation. Tap OK to return to the home screen.

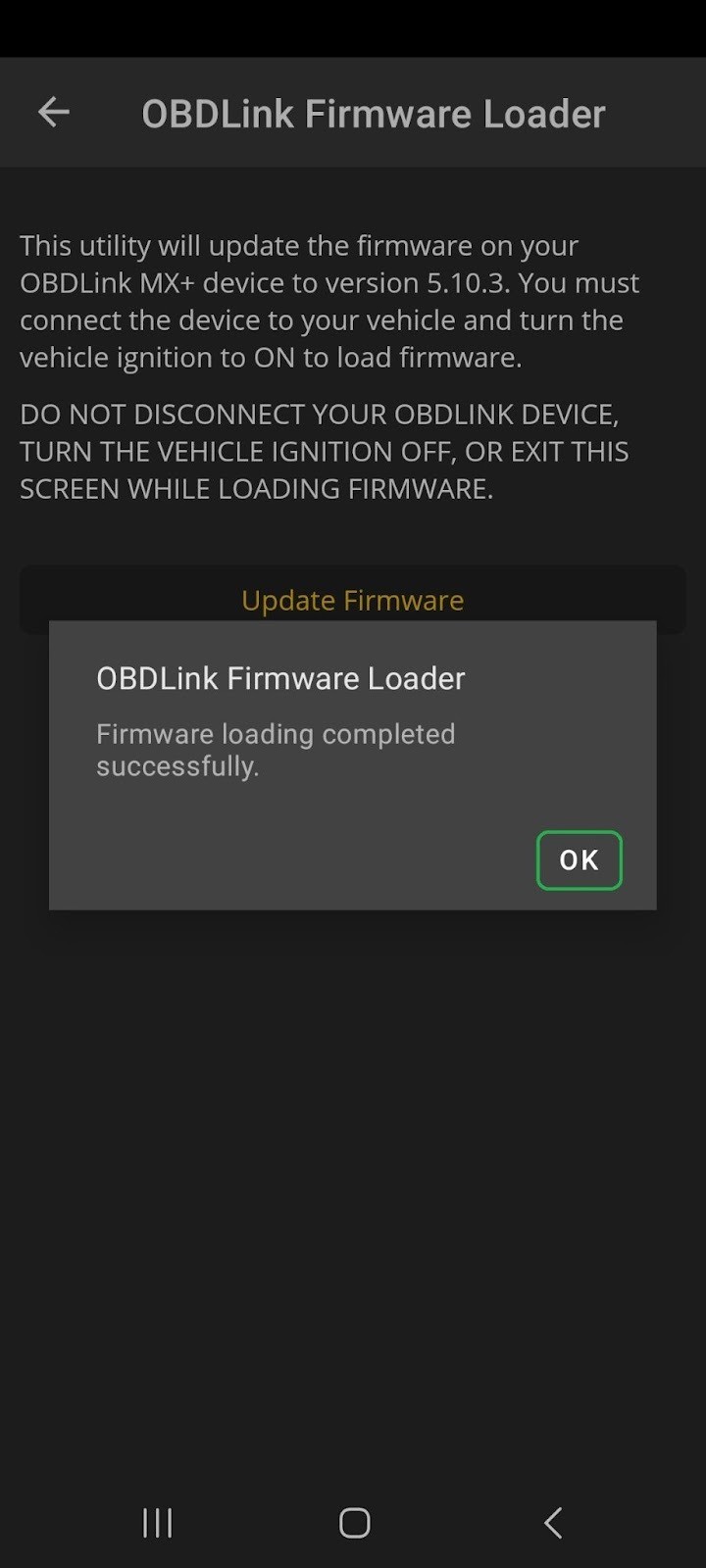

Android Firmware Updates, loading successful screen. The OK button is highlighted.

Alt text: OBDLink app firmware update successful confirmation

9. Reconnect Adapter: After the update, your OBDLink adapter will disconnect. Tap Connect on the home screen to reconnect.

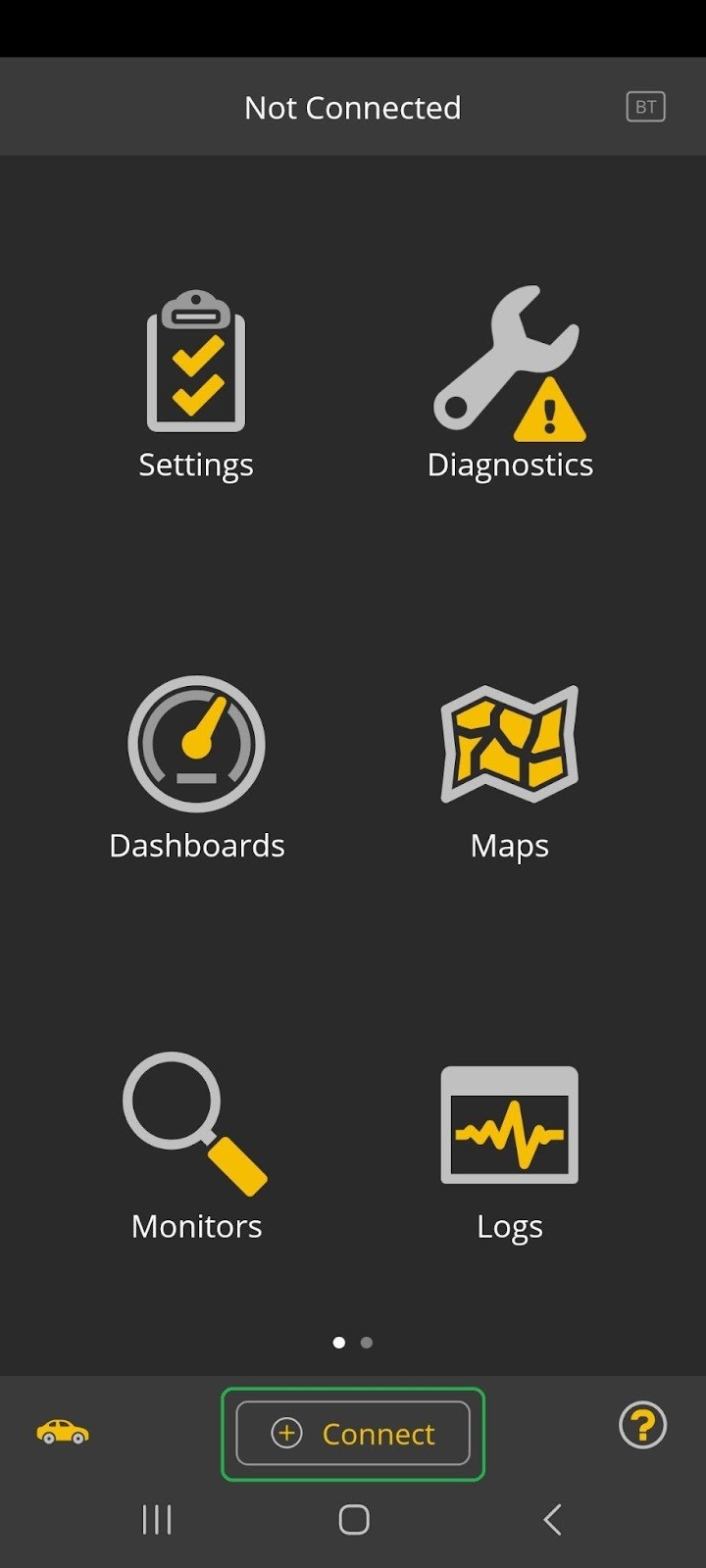

Android home screen with the Connect button highlighted.

Alt text: OBDLink app reconnect option on the home screen

4.1.3 Troubleshooting Connection Issues

If you encounter connection issues after the update:

• Unplug and re-plug the OBDLink adapter.
• Check Bluetooth settings on your phone/tablet and select the OBDLink adapter.

4.2 Updating via Windows PC

For some OBD2 scanners, a Windows PC is required for updates. Here’s how:

4.2.1 Prerequisites

• Download Software: Download the STN Firmware Updater utility from the official website.
• Installation: Run the Install-StnFirmwareUpdater.exe file.
• Adapter Connection: Connect your OBDLink adapter to the PC using a USB cable.

4.2.2 Step-by-Step Guide

1. Run the Updater: Open the STN Firmware Updater software.
2. Connect to Adapter: The software should automatically detect your OBDLink adapter.
3. Upload Firmware: Click Upload to start the update process.

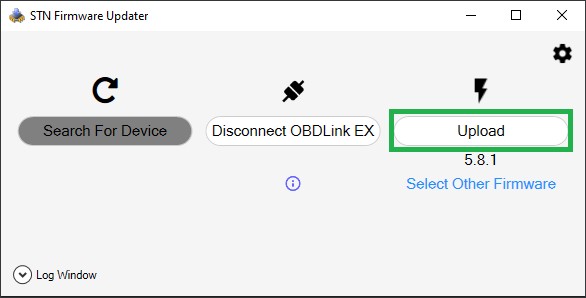

Windows Upload screenshot

Alt text: STN Firmware Updater Upload Button

4. Wait for Completion: The updater will display a message once the update is complete, indicating that your adapter is up-to-date.
5. Disconnect: Click Disconnect and close the STN Firmware Updater.

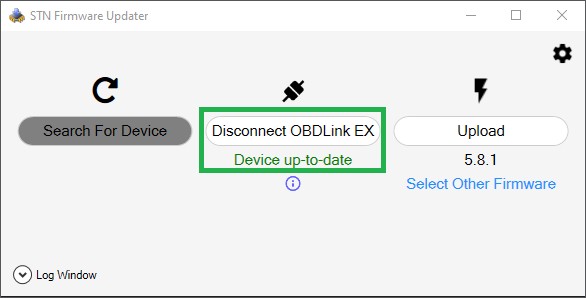

Windows Disconnect screenshot

Alt text: STN Firmware Updater Disconnect Button

4.2.3 Post-Update Steps

After the update, use the OBDLink App or OBDwiz software to connect the OBDLink adapter to your phone/tablet or Windows PC.

5. Common Issues and Troubleshooting

Sometimes, firmware updates may not go as planned. Here are some common issues and how to address them:

5.1 Symptoms of a Failed Update

• Button/Factory reset not working (OBDLink MX+ and LX adapters only)
• Error message: “Command timed out”

5.2 Troubleshooting Steps

• Retry the Update: For OBDLink EX and SX adapters, retry the process using the Windows tool.
• Check Bluetooth Connection: For OBDLink MX+, LX, and CX adapters, troubleshoot your Bluetooth connection and retry the update process using the OBDLink app.
• Disable Third-Party Apps: Disable other OBD applications that use the OBDLink adapter, such as Torque Pro.
• Power Cycle the Adapter: Unplug the adapter from the OBD port, wait 10 seconds, and plug it back in.
• iOS Users: Ensure your phone/tablet is connected to the OBDLink adapter in the Settings > Bluetooth menu.

5.3 Device Recovery

If the firmware update fails and you’ve reinstalled the OBDLink app, follow these steps:

1. Ensure no other Bluetooth/BLE adapters are streaming.
2. Turn off Bluetooth on other devices paired with the OBDLink adapter.
3. Disable other OBD applications.
4. Power cycle the OBDLink adapter.
5. iOS Users: Ensure your phone/tablet is connected to the OBDLink adapter in the iOS Settings > Bluetooth menu.
6. Verify the correct Communication Type is selected under Settings > Preferences > Communications > Communication Type.

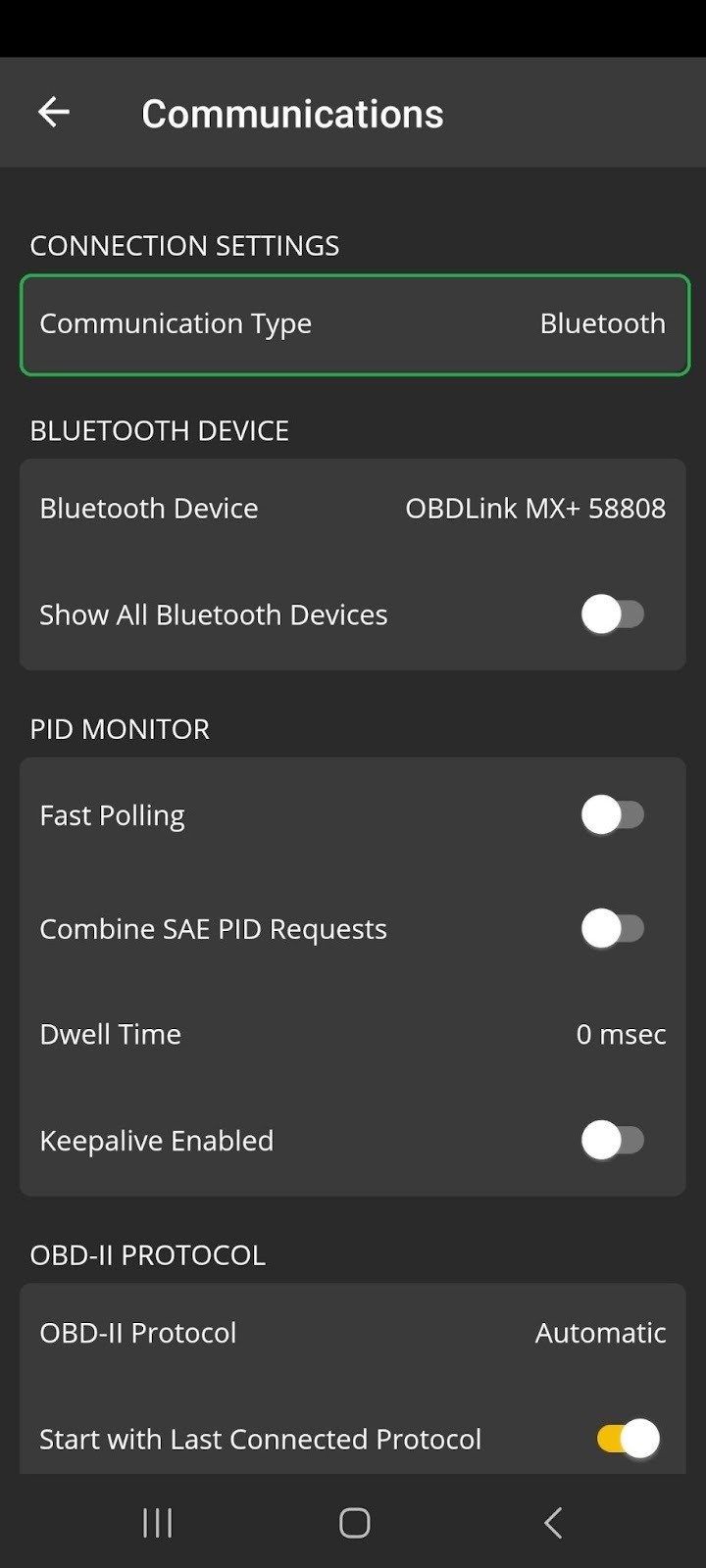

Android Settings Communications menu. The Connection Settings option is highlighted.

Alt text: OBDLink app communication settings on android

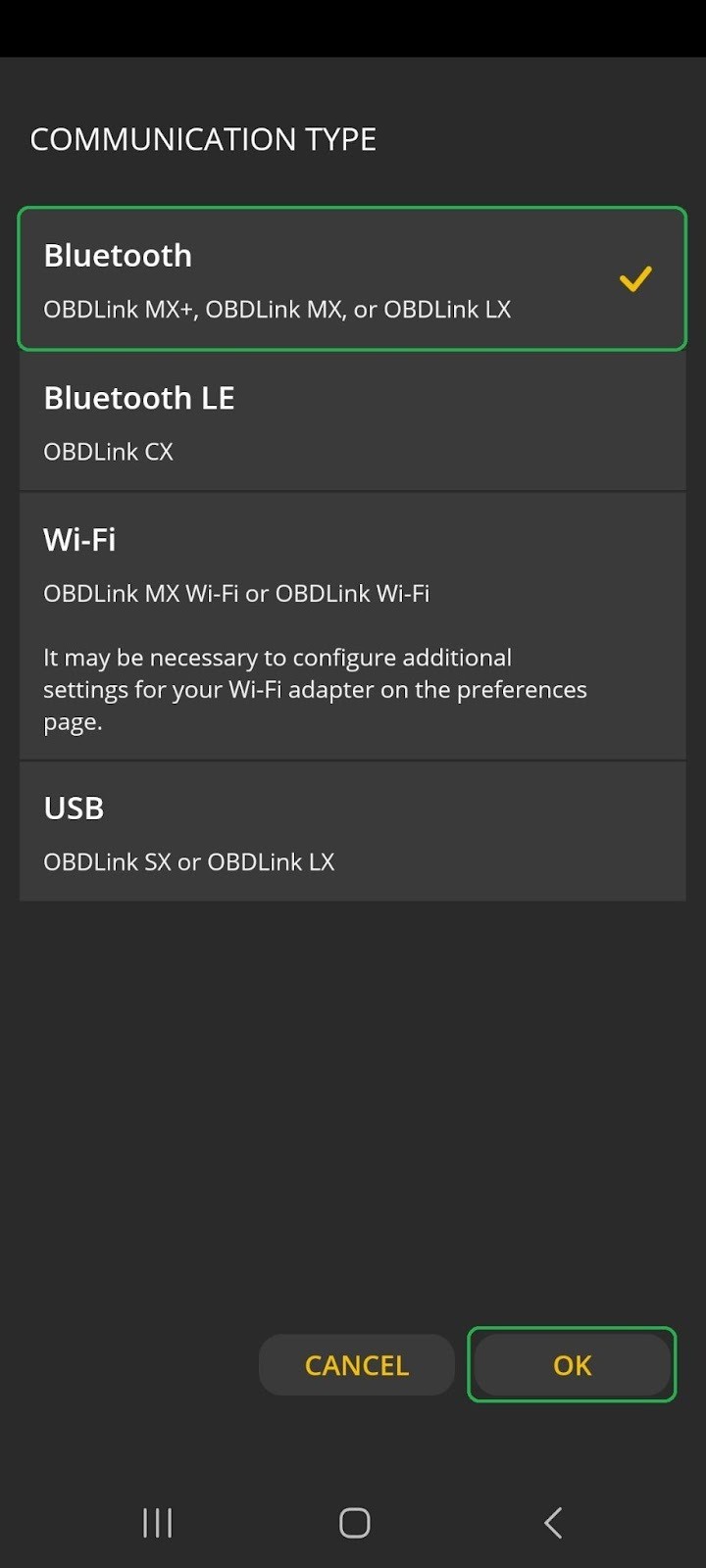

Android Communication Type menu. The Bluetooth option and OK button are highlighted.

Alt text: OBDLink app bluetooth communication settings option

7. Navigate to Settings > Firmware Updates. If you see a pop-up saying “OBDLink Device Not Found,” tap OK.
8. Tap Menu (iOS) or the 3 dots (Android), then tap Firmware Recovery.

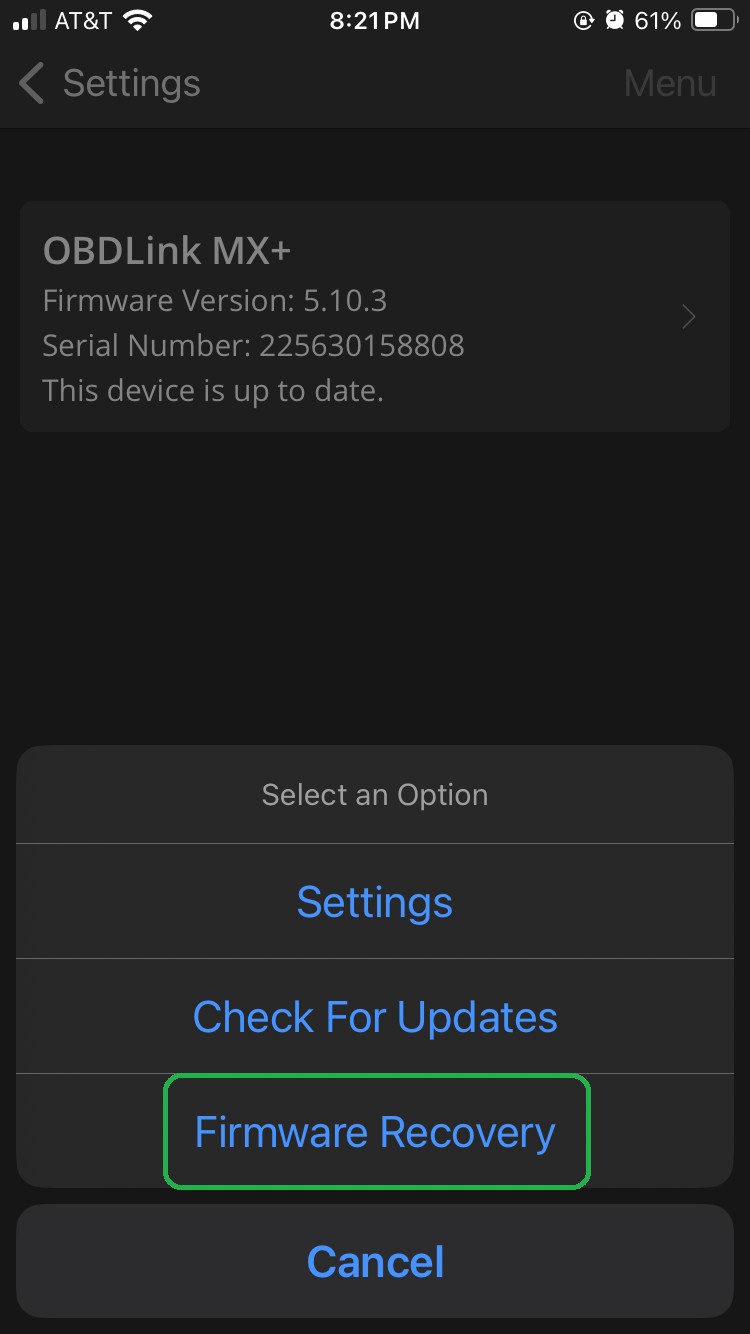

iOS Firmware Updates Menu options. The Firmware Recovery button is highlighted.

Alt text: OBDLink app firmware recovery option on iOS

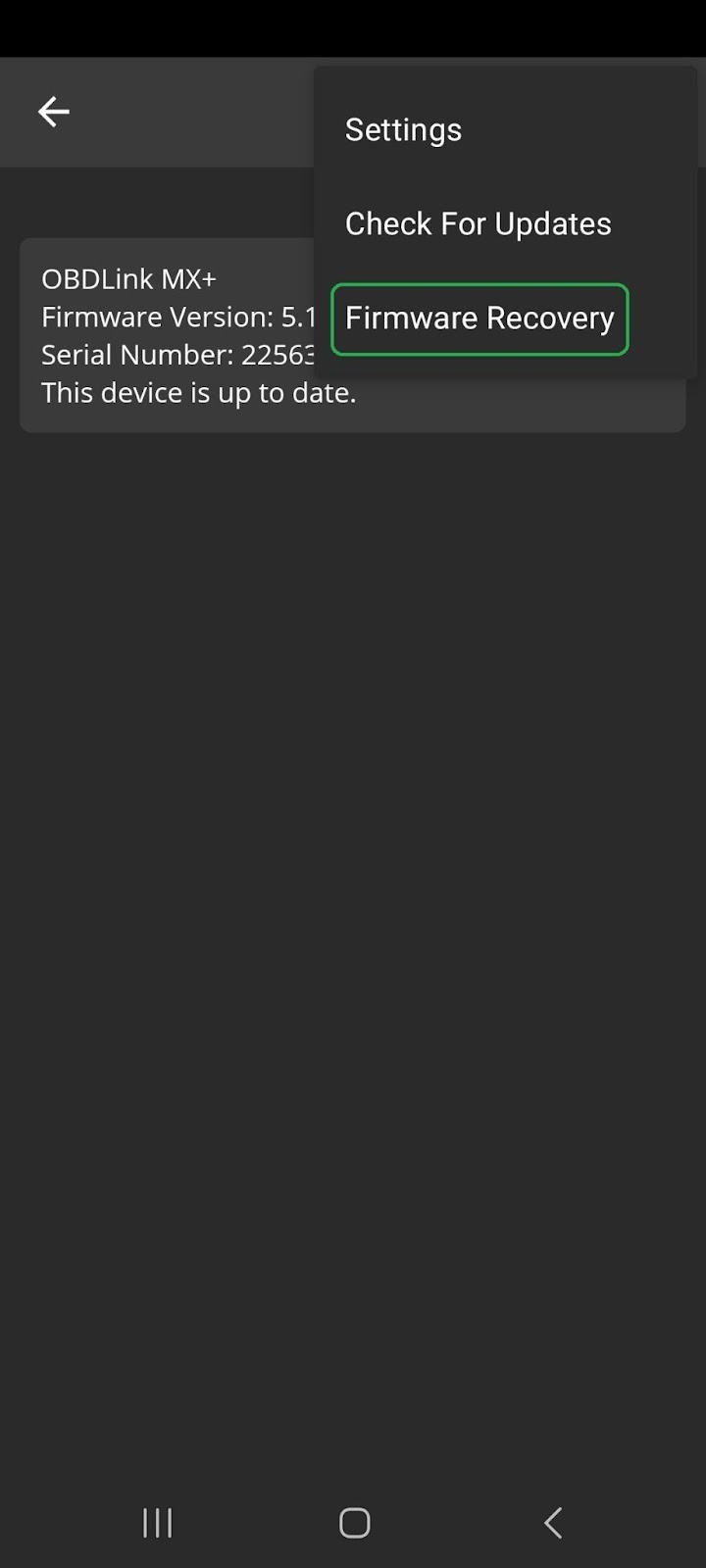

Android Firmware Updates Menu options. The Firmware Recovery button is highlighted.

Alt text: OBDLink app firmware recovery option on android

9. Tap Yes to continue.

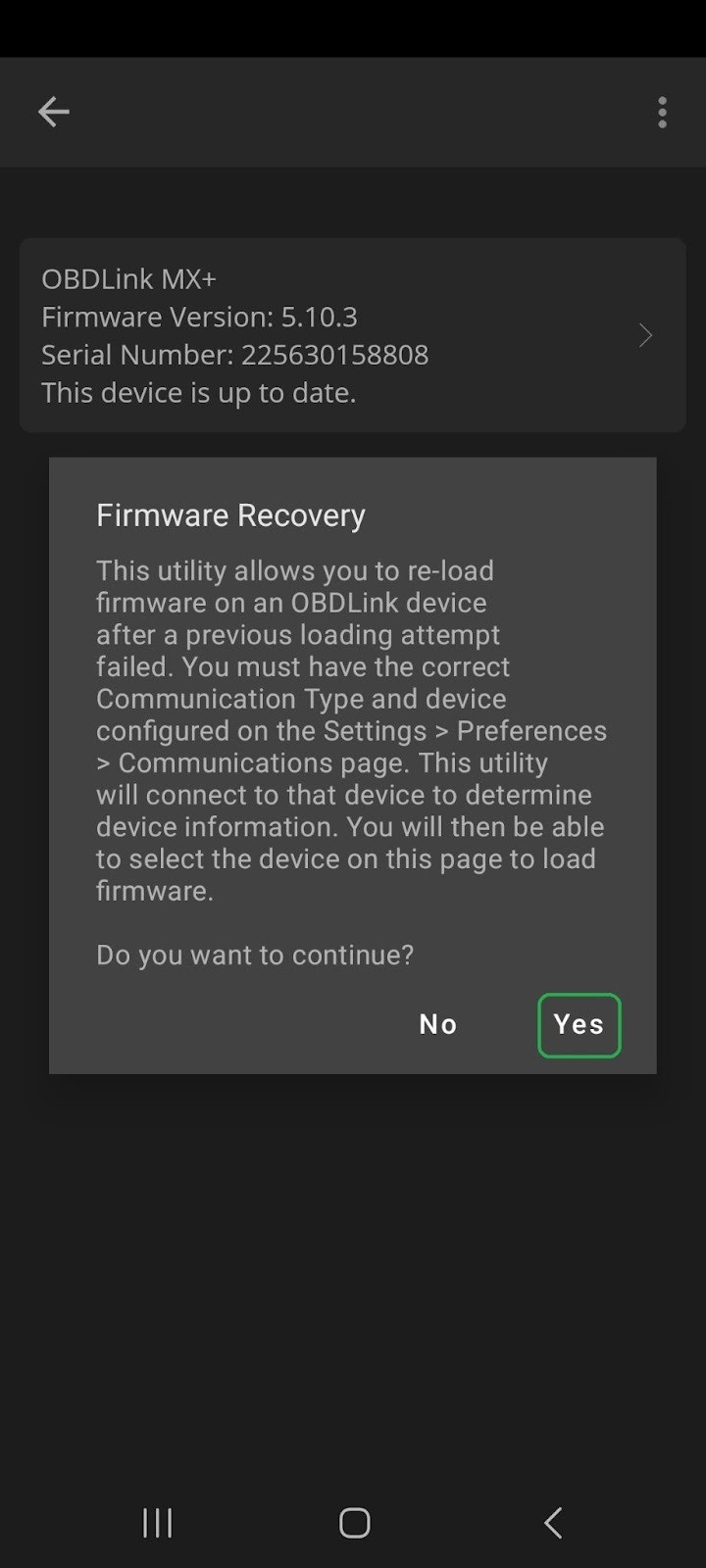

Android Firmware Recovery confirmation screen. The Yes button is highlighted.

Alt text: OBDLink app firmware recovery confirmation

10. Review the status and proceed with the update as described earlier.

6. Understanding OBD2 Error Codes

OBD2 scanners provide a wealth of diagnostic information in the form of error codes. Here’s a list of common OBD2 error codes and their meanings:

Code	Description	Possible Causes
P0101	Mass Air Flow (MAF) Sensor Range/Performance	Dirty or faulty MAF sensor, intake leaks, wiring issues
P0113	Intake Air Temperature Sensor Circuit High	Faulty IAT sensor, open circuit in wiring
P0171	System Too Lean (Bank 1)	Vacuum leaks, faulty oxygen sensor, dirty fuel injectors, low fuel pressure
P0300	Random/Multiple Cylinder Misfire Detected	Faulty spark plugs, ignition coils, fuel injectors, vacuum leaks, low compression
P0420	Catalyst System Efficiency Below Threshold (Bank 1)	Faulty catalytic converter, oxygen sensors, exhaust leaks
P0442	Evaporative Emission Control System Leak Detected (Small Leak)	Loose or faulty gas cap, damaged EVAP hoses, faulty vent or purge solenoid
P0505	Idle Air Control System Malfunction	Faulty IAC valve, carbon buildup, vacuum leaks
P0700	Transmission Control System Malfunction	Faulty transmission sensors, solenoid issues, low transmission fluid
P0741	Torque Converter Clutch Circuit Performance or Stuck Off	Faulty torque converter, solenoid issues, low transmission fluid
P1135	Heated Oxygen Sensor (HO2S) Heater Circuit Response (Bank 1, Sensor 1)	Faulty oxygen sensor, wiring issues

Regularly checking and understanding these codes can help you diagnose and fix issues early, preventing more costly repairs.
