How To Record OBD2 Data: A Comprehensive Guide For Automotive Enthusiasts

Recording OBD2 data is crucial for vehicle diagnostics and performance analysis. With OBD2-SCANNER.EDU.VN, you gain access to the knowledge and resources needed to effectively capture and interpret this data, empowering you to optimize vehicle performance and troubleshoot issues with ease, utilizing enhanced vehicle diagnostics. By leveraging our expert guidance, you can unlock valuable insights into your vehicle’s operation, leading to improved maintenance practices and a deeper understanding of automotive technology.

1. Understanding OBD2 Data Logging

What is OBD2 data logging and why is it important for car owners and technicians?
OBD2 data logging involves recording data from your car’s On-Board Diagnostics (OBD2) system, providing insights into vehicle performance and health. This process is crucial for diagnosing issues, optimizing performance, and understanding how your vehicle operates. According to the Society of Automotive Engineers (SAE), OBD2 systems have been standardized in most vehicles since 1996, offering a consistent way to access vehicle data.

1.1. The Basics of OBD2

OBD2, or On-Board Diagnostics II, is a standardized system in vehicles that provides access to various parameters related to the engine and other systems. This data can be invaluable for diagnosing problems and monitoring performance.

1.1.1. Standardized Parameters

OBD2 offers a set of standardized parameters, known as PIDs (Parameter IDs), which can be recorded and decoded across most vehicles. These PIDs include data like engine RPM, vehicle speed, coolant temperature, and more, all essential for comprehensive vehicle analysis.

1.1.2. Three Simple Steps to Log OBD2 Data

1. Configure your OBD2 logger with a list of OBD2 PIDs.
2. Connect the logger to your car via an OBD2 adapter.
3. Extract the data and decode it using software/API.

1.2. Benefits of OBD2 Data Logging

OBD2 logging offers numerous benefits, from optimizing vehicle performance to diagnosing rare issues. Let’s explore the top four advantages.

1.2.1. Driver, Vehicle, and Part Optimization

By logging OBD2 data, you can monitor driving behavior, tune your car for better performance, and analyze the field performance of new prototype parts. OEMs can use this data to optimize vehicle design and performance.

1.2.2. Rare Issue Diagnostics

Intermittent issues that occur briefly during driving can be hard to diagnose. Logging OBD2 data allows you to analyze the period around an event to troubleshoot the problem effectively.

1.2.3. Car Fleet Management

OBD2 WiFi telematics at the fleet level enables driver behavior research, fuel cost reduction, fewer breakdowns, compliance, dispute handling, and predictive maintenance. This is especially useful for businesses managing multiple vehicles.

1.2.4. Data Control and Custom Integration

With an OBD2 WiFi logger, you record raw time series data that can be extracted and uploaded to your server. This allows for custom integration via open APIs, giving you complete control over your data.

2. Choosing the Right OBD2 Data Logger

What factors should you consider when selecting an OBD2 data logger for your needs?
Selecting the right OBD2 data logger depends on your specific needs, considering factors like ease of use, data storage, connectivity options, and software compatibility. At OBD2-SCANNER.EDU.VN, we offer expert guidance to help you choose the best tool for your diagnostic and data logging needs, ensuring you get the most out of your vehicle analysis. By making an informed decision, you can streamline your diagnostic processes and gain deeper insights into your vehicle’s performance.

2.1. The CANedge OBD2 Data Logger

The CANedge is a CAN bus data logger that offers optional GPS/IMU, WiFi, and 3G/4G, making it ideal for OBD2 fleet telematics. It combines ease of use with advanced features for comprehensive data logging.

2.1.1. Key Features of CANedge

• Plug & Play: Easy to set up and use out of the box.
• Pro Specs: Extractable 8-32 GB SD card, 2xCAN/LIN, CAN FD, zero data loss.
• Compact: Small size (8 x 5 x 2 CM), robust aluminum enclosure.
• WiFi/LTE: Push data via WiFi or 3G/4G to your server with end-to-end security.
• GNSS + 3D IMU: Built-in GPS/IMU for accurate position, speed, and distance data.
• Open Source API: Free open-source software/APIs for MF4 to ASC/CSV conversion.

2.2. Software Example: OBD2 Dashboard for Your Cars

With CANedge, you can easily set up free, custom browser dashboards for visualizing your OBD2 data and setting alerts. You can also combine your OBD2 data with GPS/IMU data for a more comprehensive analysis.

2.2.1. Online Playground

Check out the online playground to see how the OBD2 dashboard works in real-time. This allows you to explore the features and benefits of visualizing your OBD2 data.

2.2.2. Dashboards Intro

Learn more about setting up and customizing dashboards to monitor your vehicle’s performance. This will help you make informed decisions based on the data collected.

2.3. OBD2 Data Pack

To help you get started, download the ‘OBD2 Data Pack,’ which includes:

• OBD2 DBC
• 25+ car DBCs (reverse engineered)
• 100+ MB of data from 10+ cars
  OBD2 data pack

3. Practical Use Cases for OBD2 Data Logging

How can OBD2 data logging be applied in real-world scenarios to improve vehicle maintenance and performance?
OBD2 data logging can be applied in numerous real-world scenarios to improve vehicle maintenance and performance, such as OEM field testing, vehicle telematics, and detailed case studies. At OBD2-SCANNER.EDU.VN, we provide insights and tools to effectively utilize OBD2 data, helping you make informed decisions and optimize vehicle operations. By understanding these practical applications, you can enhance your vehicle’s reliability and efficiency.

3.1. OEM Field Testing of Vehicle Parts

As an OEM, you may need to do late-stage field tests of prototype equipment. The CANedge1 is ideal for this, as it’s compact, plug-and-play, and easily pre-configured. Data can be collected periodically and analyzed in your favorite CAN tools.

3.1.1. CANedge1

The CANedge1 is a compact and easy-to-use data logger perfect for OEM field testing. Its robust design and simple setup make it ideal for collecting data from multiple vehicles over extended periods.

3.2. Vehicle Telematics (OBD2 + GNSS/IMU + 3G/4G)

The CANedge3 can upload recorded OBD2 data through 3G/4G using your SIM card. This enables near real-time wireless OBD2 data transfer from on-road vehicles to your cloud server.

3.2.1. CANedge3

The CANedge3 is designed for vehicle telematics, providing wireless OBD2 data transfer and GPS/IMU data. It’s perfect for fleet management and real-time vehicle monitoring.

3.3. Case Study: OBD2/CAN Telematics

Learn how Volkswagen uses the CANedge2 to log OBD2 and raw CAN data to an SD card, and auto-push the data to their self-hosted server for analysis. This showcases the practical benefits of using CANedge for vehicle data logging.

3.3.1. Volkswagen’s Experience

Volkswagen found the CANedge2 easy to set up and use, with robust configuration options and outstanding support. This highlights the device’s reliability and the quality of support provided.

3.3.2. Key Benefits

• Rapid pace of setup
• Robust configuration options
• Outstanding support
  Volkswagen logo case study

4. Working with OBD2 Data

How do you decode and interpret raw OBD2 data to gain meaningful insights into your vehicle’s performance?
Decoding and interpreting raw OBD2 data involves using tools like DBC files and software to translate the data into meaningful parameters such as speed and engine RPM. At OBD2-SCANNER.EDU.VN, we provide the resources and guidance necessary to effectively decode and analyze OBD2 data, empowering you to understand and optimize your vehicle’s performance. By mastering these techniques, you can make informed decisions about vehicle maintenance and performance enhancements.

4.1. OBD2 Data from an Audi A4

Download OBD2 samples from CANedge to see real-world data and how it can be used for analysis. This provides a hands-on experience with OBD2 data logging.

4.1.1. Resources

• Raw OBD2 data
• Decoded OBD2 data
• Software tools
  OBD2 MDF4 Data Logger Pro

5. Frequently Asked Questions (FAQ) About OBD2 Data Logging

What are the most common questions about OBD2 data logging, and how can they be answered?
Common questions about OBD2 data logging range from understanding standard parameters to using UDS for extended data access. OBD2-SCANNER.EDU.VN offers comprehensive answers to these FAQs, providing you with the knowledge needed to effectively use OBD2 technology for vehicle diagnostics and performance monitoring. By addressing these questions, we aim to empower you with the expertise to confidently manage your vehicle’s data.

5.1. What Standard Vehicle Data Can You Log from Your Car?

The OBD2 protocol specifies a range of standardized vehicle data that you can log from your car. Each car differs in what OBD2 data is supported, with older cars often supporting fewer parameters.

5.1.1. Common OBD2 Parameters

• Fuel system status
• Engine load
• Coolant temperature
• Fuel trim
• Fuel pressure
• Intake manifold pressure
• Engine RPM
• Vehicle speed
• Intake air temperature
• MAF air flow rate
• Throttle position
• Air status
• Oxygen sensor status
• Runtime since engine start
• Distance with MIL on
• Fuel tank level input
• System vapor pressure
• Absolute load value
• Hybrid battery pack life
• Engine oil temperature
• Engine fuel rate
• Torque
• VIN
• Various DTCs

5.2. How Do You Decode Raw OBD2 Data from a CANedge OBD2 Data Logger?

To decode raw OBD2 data, you need a database of decoding rules and suitable OBD2 software. A 100% free OBD2 DBC file is available, containing the majority of the standardized Mode 01 OBD2 PID decoding rules.

5.2.1. Using OBD2 DBC File

The OBD2 DBC file uses extended multiplexing to enable OBD2 decoding. Load your raw OBD2 data and the OBD2 DBC file in one of the free software tools to visualize decoded data such as Speed, Engine Speed, MAF, and Fuel Level.

5.3. What is UDS?

The Unified Diagnostic Services protocol (UDS, ISO 14229-1) is a communication protocol used within automotive ECU communication. An UDS diagnostic tool can be used to send requests messages into the CAN bus to retrieve information from specific ECUs.

5.3.1. UDS vs. OBD2

While OBD2 is intended as an on-board diagnostics protocol for when the vehicle is moving, UDS is intended as an off-board diagnostic protocol for when the vehicle is standing still.

5.4. How to Make UDS Requests Over ISO-TP (ISO 15765-2)?

UDS requests may require performing transport protocol requests. An UDS data logger sends a request frame specifying the service ID (SID) and data identifier (DID) of interest, and the car responds with a series of frames.

5.4.1. Communication Flow

1. UDS data logger sends a request frame
2. Car responds with a first frame
3. UDS logger acknowledges the first frame by sending a flow control frame
4. ECU sends consecutive frames with the remaining payload of the message

5.5. UDS and OBD2 Extended PIDs for Car Data Logging

The UDS service ID (SID) and the data identifiers (DID) are sometimes combined into one ID and referred to as an ‘extended OBD2 PID,’ such as 0x220101. This is used to extract car data beyond what is available through service 01 OBD2 PID requests.

5.5.1. Examples

Some electric cars provide access to State of Charge (SoC%) via UDS requests under service 0x22.

5.6. Using the CANedge as an UDS Data Logger

The CANedge can be configured to send UDS requests. This is done by sending a request frame and adding a flow control frame within X ms after the request, triggering the full sequence of UDS responses.

5.6.1. Configuration

The resulting log files with UDS responses can be loaded in tools like CANalyzer or processed via the free Python CAN bus API to push parameters to a Grafana UDS dashboard.

5.7. Will an OBD2 Data Logger Work for My Car?

Most likely, the majority of cars and light trucks use the OBD2 standard. OBD2 has been mandatory in the USA since 1996 and in the EU since 2003.

5.7.1. Compatibility Check

Review your OBD2 connector in your car to ensure it has “metal pins” in the CAN High (pin 6) and CAN Low (pin 14) pins of the OBD2 connector.

5.8. What Are the Different OBD2 Signal Protocols?

There are 5 OBD2 signal protocols in total:

• ISO 15765 (CAN)
• SAE J1850 (Ford Motor Company)
• SAE J1850 (General Motors)
• ISO 9141-2 (Chrysler and some EU/Asian vehicles)
• ISO 14230 (KWP2000) (Mainly used by EU manufacturers)

5.8.1. CANedge/CLX000 Support

The CANedge/CLX000 supports CAN-based OBD2. Contact support if you are unsure whether your car is supported.

5.9. Can I Use the CANedge/CLX000 for Heavy-Duty Vehicles?

If you’re aiming to log data from heavy-duty vehicles like trucks, tractors, excavators, etc., you will typically need to record J1939 data. The J1939 protocol is a standardized protocol used in most heavy-duty vehicles today.

5.9.1. J1939 Data Logger

You can use the CANedge/CLX000 as a J1939 data logger with a J1939 DBC file.

5.10. Which Data Logger Should I Pick?

Both the CANedge and CLX000 data logger series can be used as OBD2 data loggers. The CANedge series is optimized for logging, and the CANedge2 is particularly useful for setting up OBD2 telematics workflows and OBD2 dashboards.

5.10.1. CANedge vs. CLX000

If you also wish to stream OBD2 data in real-time via USB to your PC, the CLX000 series is recommended.

5.11. Can I Stream OBD2 Data in Real-Time?

Yes, the CLX000 series enables real-time streaming of raw CAN data and OBD2 data via USB.

5.12. Raw CAN Bus Data vs. OBD2 Data

When you connect a CAN logger like the CANedge or CLX000 to your car via the OBD2 connector, it will by default start recording raw CAN bus data.

5.12.1. Decoding Raw CAN Data

If you are not the vehicle OEM, the only way to decode the raw CAN data will be by hacking your car and reverse engineering the data. In most cases, your main option for collecting data will be via the OBD2 protocol.

5.13. What Are the Different OBD2 Device Types?

There is a massive number of OBD2 device types on the market:

• OBD2 Scanners: Used by mechanics/technicians for diagnostic purposes.
• OBD2 Dongles: Small, low-cost, and simple-to-use consumer-oriented Bluetooth OBD2 readers.
• OBD2 Data Loggers: Record OBD2 timeseries data to an SD card in standalone mode.
• OBD2 WiFi/LTE Loggers: Support WiFi or 3G/4G data transfer for OBD2 telematics.
• OBD2 Interfaces: Allow for real-time streaming of OBD2 data to a PC via USB.

5.14. Will the OBD2 Logger Drain My Car Battery?

Typically, when you connect a CANedge to your vehicle, it’ll turn on/off with the ignition, meaning it will not drain any power from the vehicle battery when turned off.

5.14.1. Verification

Verify if your logger turns on/off with your vehicle by evaluating the LEDs after the car has been turned off for 15-20 minutes.

5.15. Can I Log GPS Data with an OBD2 Logger?

Your car may have a built-in GPS, though it’s rarely possible to extract the data via OBD2 or the proprietary CAN data. It’s recommended to use a CANedge incl. GNSS/IMU to record GPS data.

6. Ready to Get Started?

Are you ready to take control of your vehicle’s data and unlock its full potential?
Ready to log OBD2 data from your car? Get your CANedge today and start exploring the wealth of information available from your vehicle. At OBD2-SCANNER.EDU.VN, we are here to support you every step of the way, providing the tools and expertise you need to succeed. Contact us today to learn more and take the first step toward better vehicle management and performance.

Take the next step towards enhanced vehicle diagnostics!

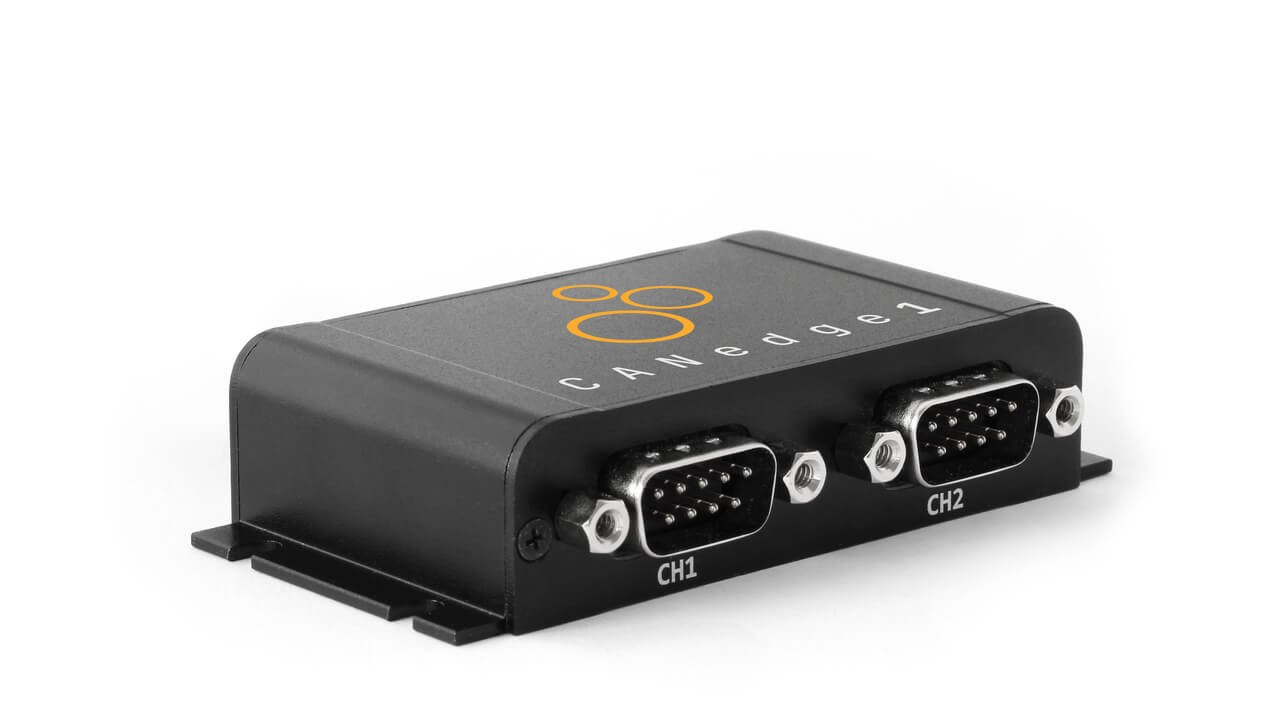

CANedge1 – Dual CAN Bus Data Logger
